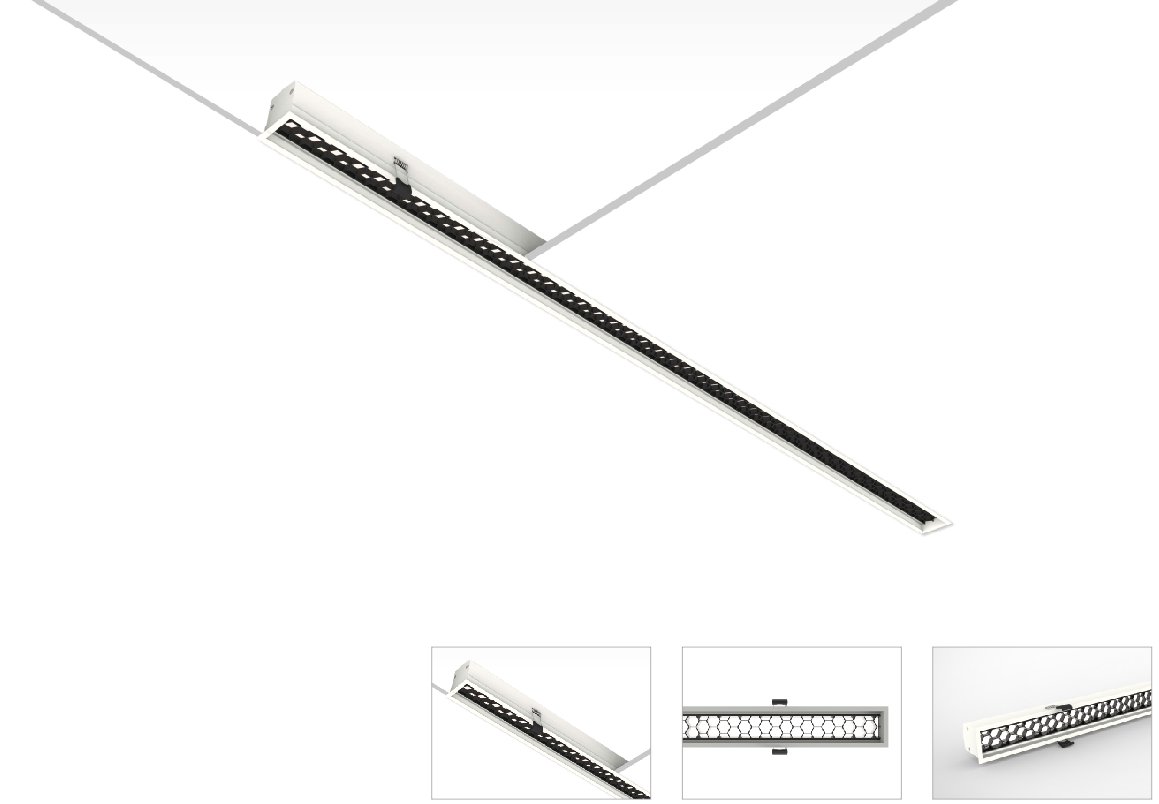

Jago Recessed luminaire 902



Description:

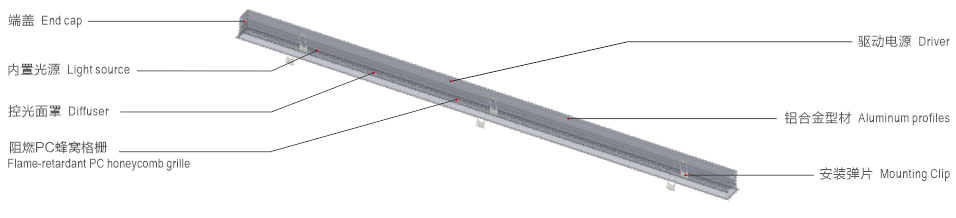

902 series recessed mounted linear LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame retardant PC lens + flame retardant PC anti-glare cover,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie combined with the concept of indirect/direct lighting distributions, applying anti-glare diffuser and double transmission principle of secondary reflection, Flame-retardant PC honeycomb grille, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.




Technical Data


Product name: 902 Recessed luminaire
Type: Recessed luminaire
Housing material:   High-quality Aluminum alloy
Surface finish: Matte powder coating (matte white)
Diffuser material:Flame retardant PC lens + flame retardant PC anti-glare cover
Light source: SMD
Luminaire efficiency: 80 lm /W
CRI: 90
Color temperature: 3000K/ 4000K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:

 Details



Standard single fitting



Item No Power(W) Light type Flux(lm) CCT(K) Color

Size(mm)

           902-RM1200H18W
                                36W
        SMD
         1620 lm
       3000/4000/6500K
               White
     1200*51*51
           902-RM1800T27W
                                54W
        SMD
         2430 lm
       3000/4000/6500K
               White
     1800*51*51
           902-RM1200H36W
                                36W
        SMD
         3420 lm
       3000/4000/6500K
               White
     1200*51*51
           902-RM1200H54W
                                54W
        SMD
         4860 lm
       3000/4000/6500K
               White
     1800*51*51


-
