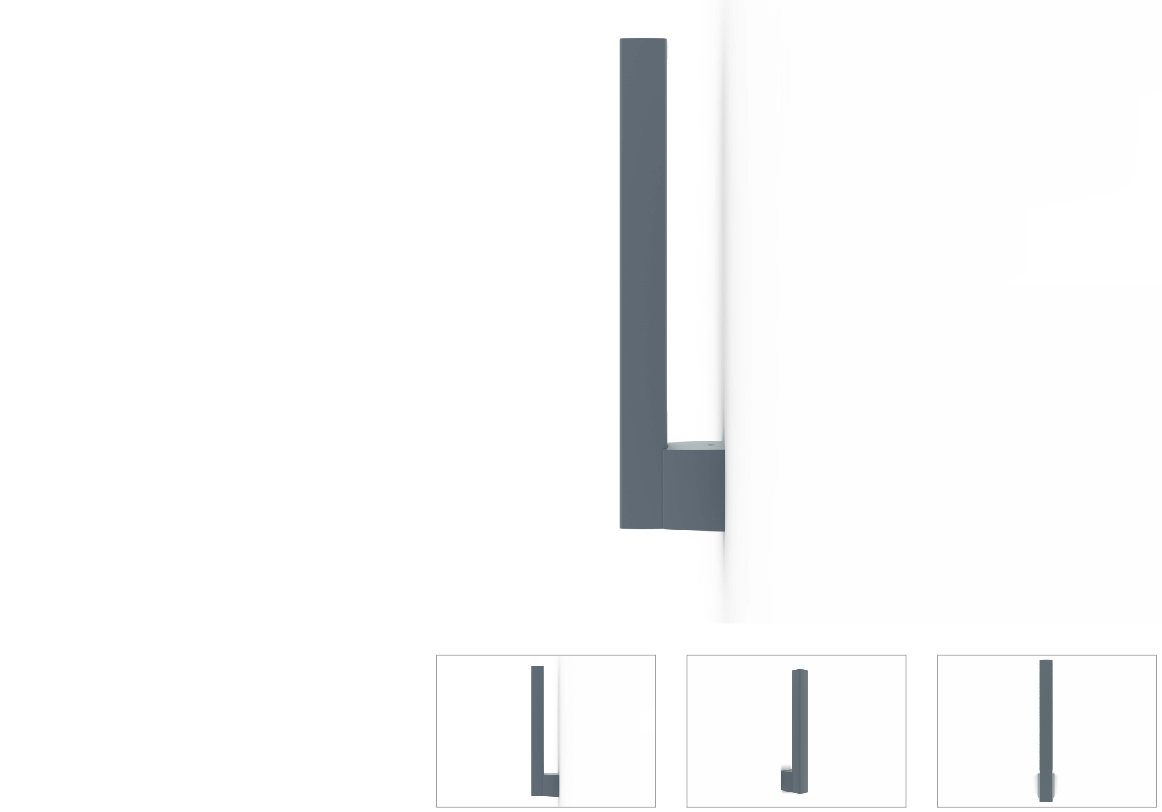

Jago Wall lamp 901



Description:

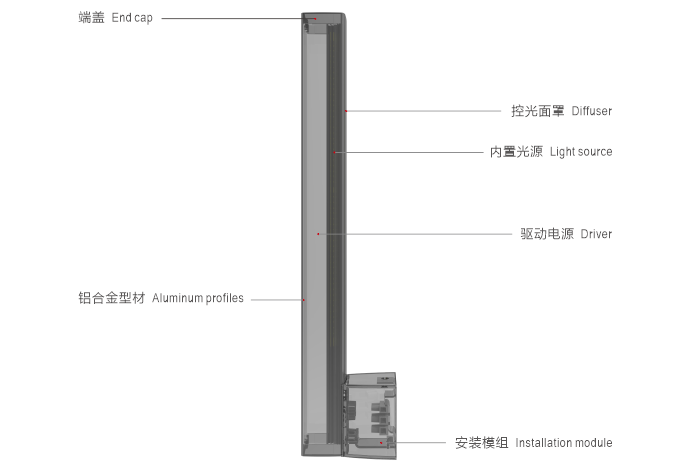

901 series Wall mounted linear LED luminarie, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame retardant PC honeycomb grille mask,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie combined with the concept of indirect/direct lighting distributions, applying anti-glare diffuser and double transmission principle of secondary reflection, Flame-retardant PC honeycomb grille, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.




Technical Data


Product name: 901  Wall lamp
Type: Wall lamp
Housing material: High-quality Aluminum alloy
Surface finish: Fine sand oxidation (silver/brown gray/black)  Matte powder coating (matte white)
Diffuser material:Flame-retardant PC honeycomb grille
Light source: SMD
Luminaire efficiency: 90 lm /W
CRI: 90
Color temperature: 3000K/ 4000K
Input voltage: 220/50Hz
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:

 Details





Standard single fitting


Item No Power(W) Light type Flux(lm) CCT(K) Color

Size(mm)

901-VB500H8.4W 8.4W SMD 756 lm 3000/4000 Silver / White
Brown gray / Black
400*5*86
