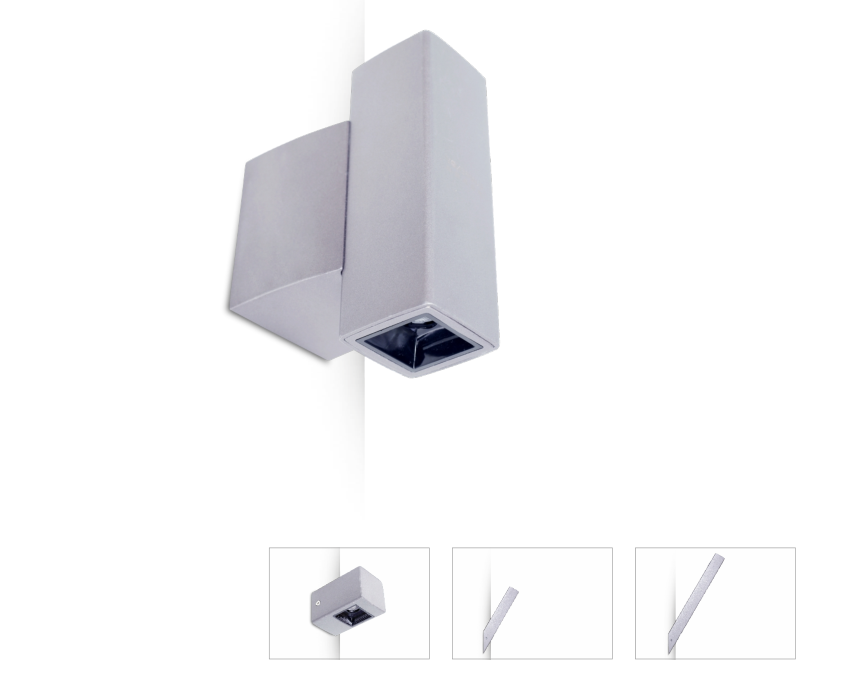

Description:

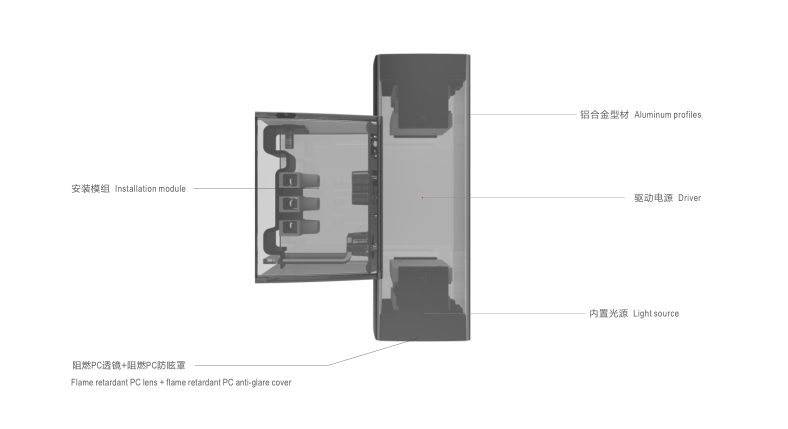

904C series ceiling wall mounted linear LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame retardant PC lens + flame retardant PC anti-glare cover，UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie combined with the concept of indirect/direct lighting distributions, applying anti-glare diffuser and double transmission principle of secondary reflection, Flame-retardant PC honeycomb grille, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.

Technical Data：

Product name: 904  Wall lamp
Type: Wall lamp
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting finish on housing (silver/brown gray)
Diffuser material:Flame retardant PC lens + flame retardant PC anti-glare cover
Light source: SMD
Luminaire efficiency: 80 lm /W
CRI: ＞83
Color temperature: 3000K/ 4000K /5700K
Input voltage: 220V-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅲ

 Details：

Standard single fitting：
