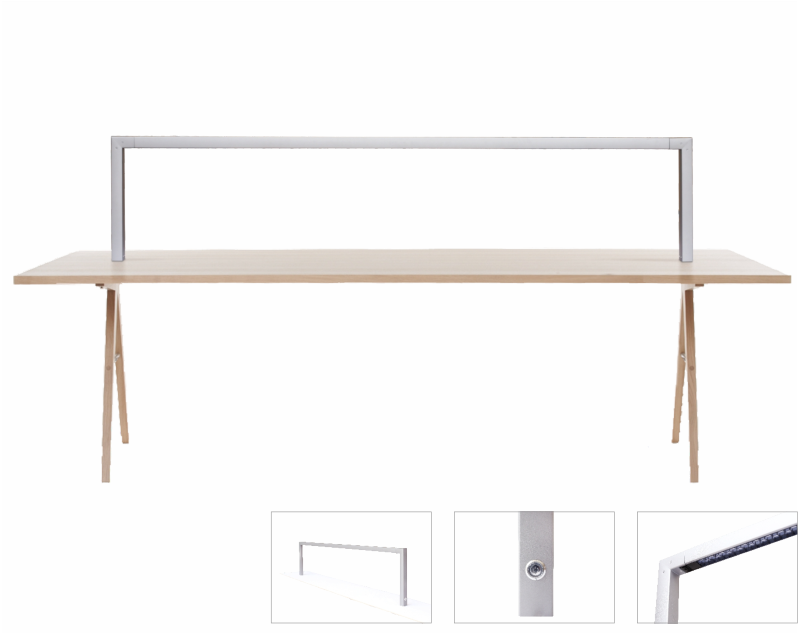

Jago desk reading lights luminaires 901



Description:

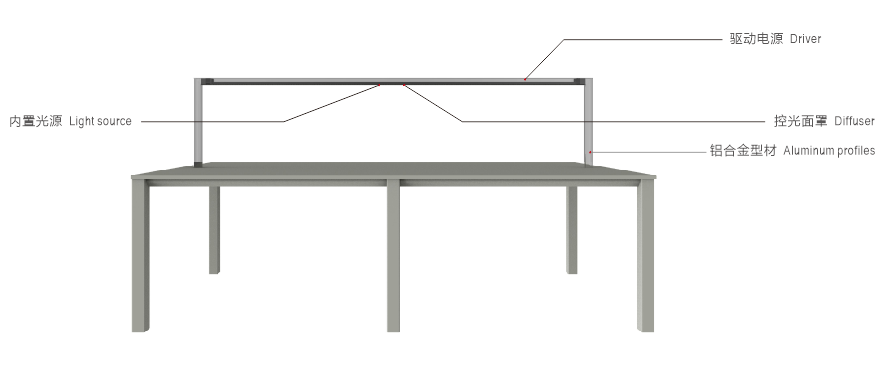

901 series desk reading lights with housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Electrostatic thermo-painting finish on housing and Flame retardant PC honeycomb louver,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminaire adopted TIR optic-control technology, achieve unification between precise control and high efficiency. Getting better with the “Lumbency curve” that brought by unique soft switch technology. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.


Technical Data


Product name: 901 Desk reading light
Type: Desk reading light
Housing material: High-quality Aluminum alloy

Surface finish: Electrostatic thermo-painting finish on housing (silver/brown gray)
Diffuser material:Flame-retardant PC honeycomb grille
Light source: SMD
Luminaire efficiency: 90 lm /W
CRI: 83
Color temperature: 3000K/ 4000K/ 5700K
Input voltage: 220V-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

 Details





Standard single fitting



Item No Power(W) Light type Flux(lm) CCT(K) Color Size(mm)
901-DB1200H36W 36 SMD 3260 3000/4000/5700
Silver / Brown gray
1200*40*320
901-DB1800H54W 54
SMD
4880 3000/4000/5700
Silver / Brown gray
1800*40*320
901-DB2400H72W
72 SMD 6500 3000/4000/5700
Silver / Brown gray
2400*40*320
