Description:

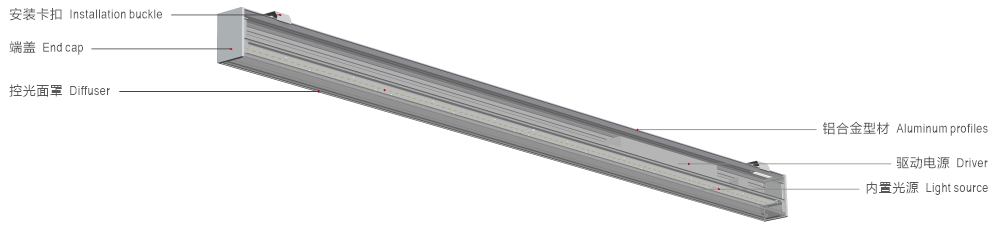

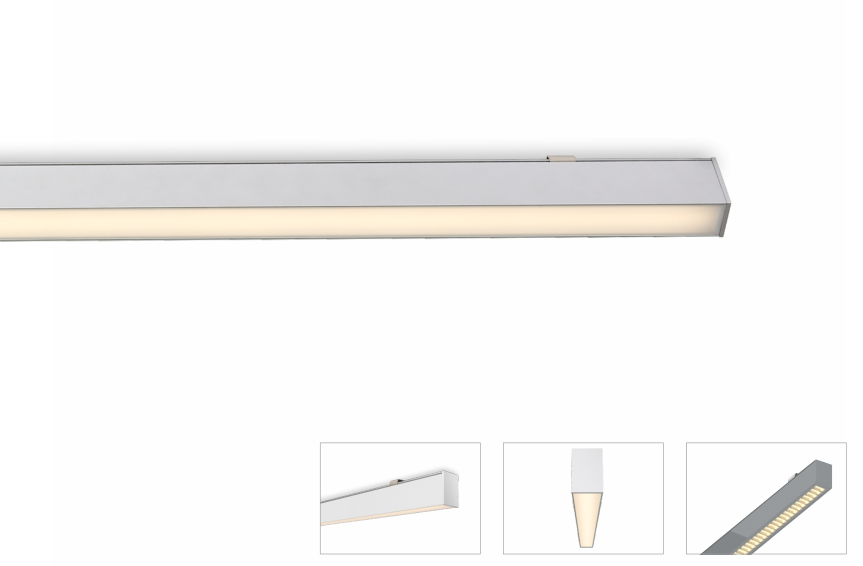

715A series ceiling surface mounted linear LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws, UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. High transmittance PC diffuser specially designed for LED light source creating smooth and uniform lighting distributions high visual comfort for all lighting applications, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. Trimless recessed mounted is also available for this series.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.

Technical Data：

Product name: 715A Ceiling/wall surface mounted luminaire
Type: Ceiling/wall surface mounted luminaire
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PC
Light source: SMD
Luminaire efficiency: 80 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/ 5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

Standard single fitting：
