Description:

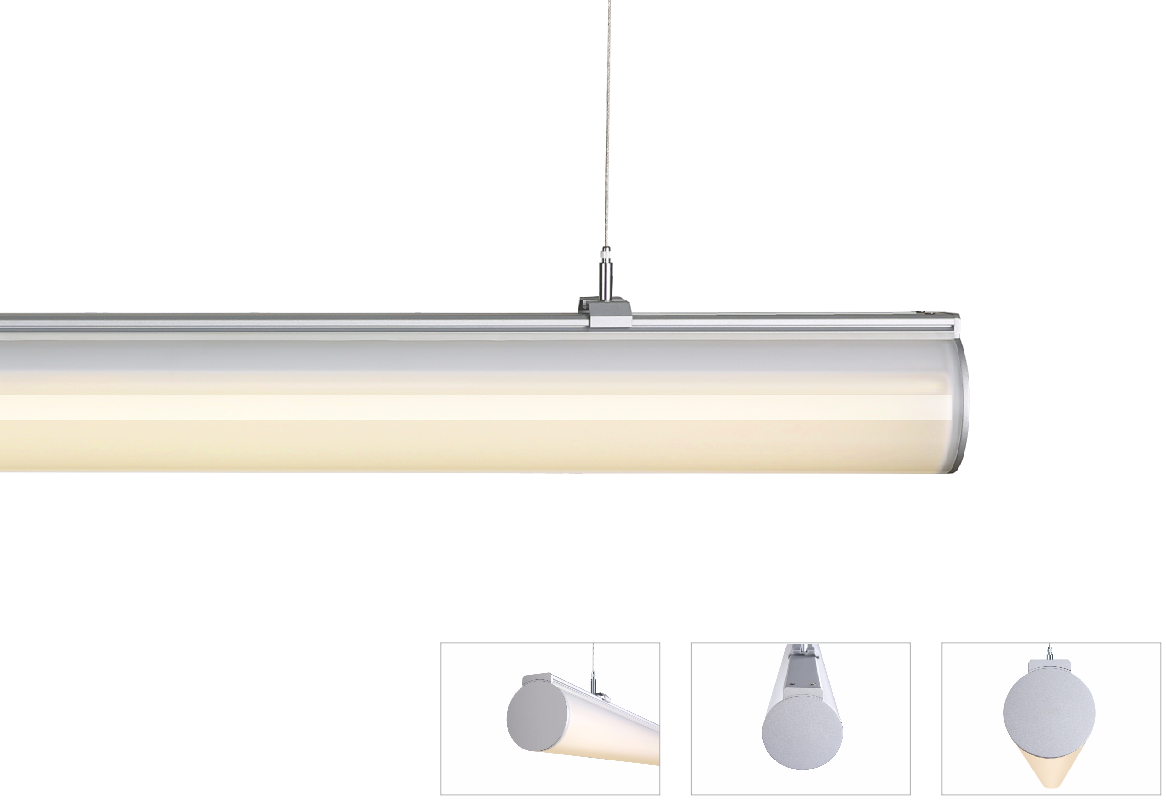

702 series linear light, simple and concise look, high quality extruded aluminum housing, die-cast aluminum end caps with no visible screws and round tubular diffuser which provides 270° illumination and smooth uniform appearance. Advanced Thermal Management ensures maximum lumen maintenance and consistent color temperature.
Application: offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails, etc.
Technical Data：
Product name: 702 Suspended luminaire
Type: Suspended
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 115 lm/W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ
Details：
Standard single fitting：
|
Item No |
Power（W） |
Light type |
Flux（lm） |
CCT（K) |
Color |
L*W*H（mm） |
|
702-SS1147T18W |
18 W |
SMD |
2070 lm |
3000/4000/6500 |
Silver |
1147*90*100 |
|
702-SS1707T27W |
27 W |
SMD |
3105 lm |
3000/4000/6500 |
Silver |
1707*90*100 |
|
702-SS1147T36W |
36 W |
SMD |
4140 lm |
3000/4000/6500 |
Silver |
1147*90*100 |
|
702-SS1707T54W |
54 W |
SMD |
6210 lm |
3000/4000/6500 |
Silver |
1707*90*100 |
