Description:

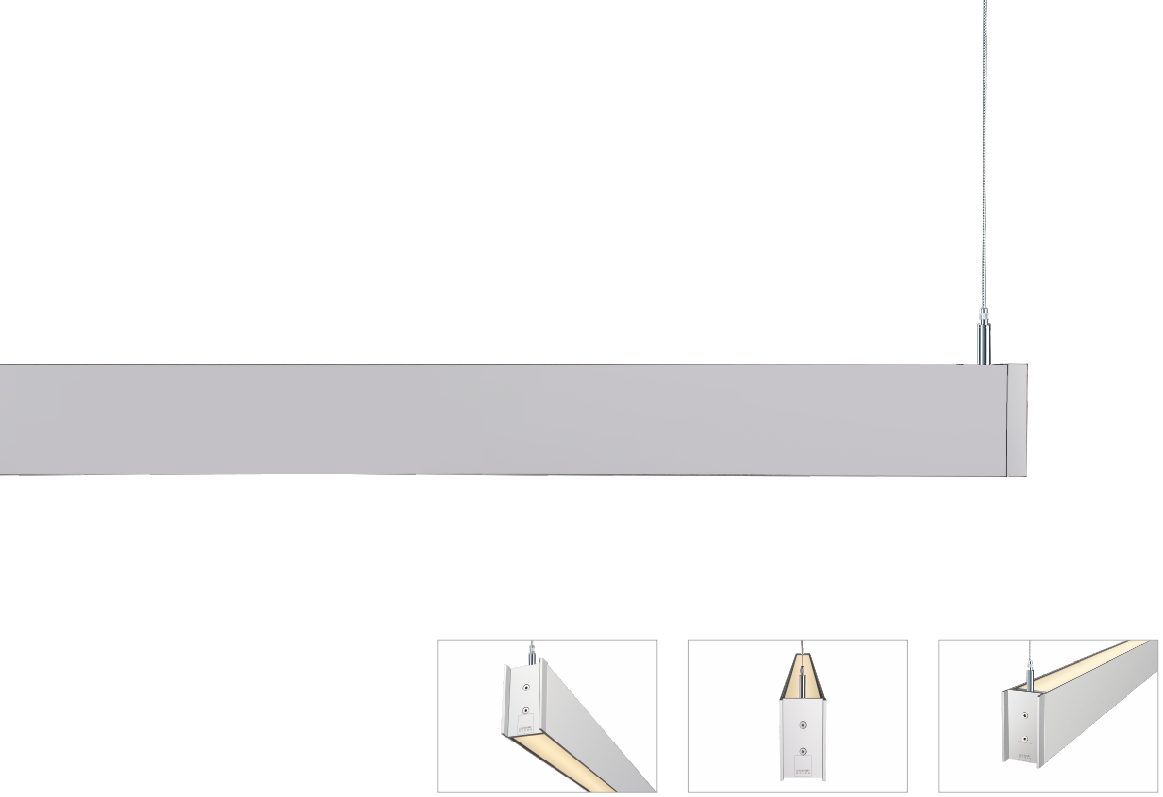

730B series linear suspended luminarie, housing made of high pressure extruded aluminum construction, also the modularized structure can made this lamp systematic available. The innovative integrated structure and slim lamp body means great breakthrough in LED lamp design. The simple and graceful 730B can be combined with the 531 series spot light in which way you can integrate the static basic lighting with the accent lighting. Options: straight module, L shape module, T shape module, crossed module;
Application: Office building, school, hospital, supermarket, mall, hotel, and other public area and facility.


Technical Data：

Product name: 730B Suspended luminaire
Type:  Suspended
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 90 lm/W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

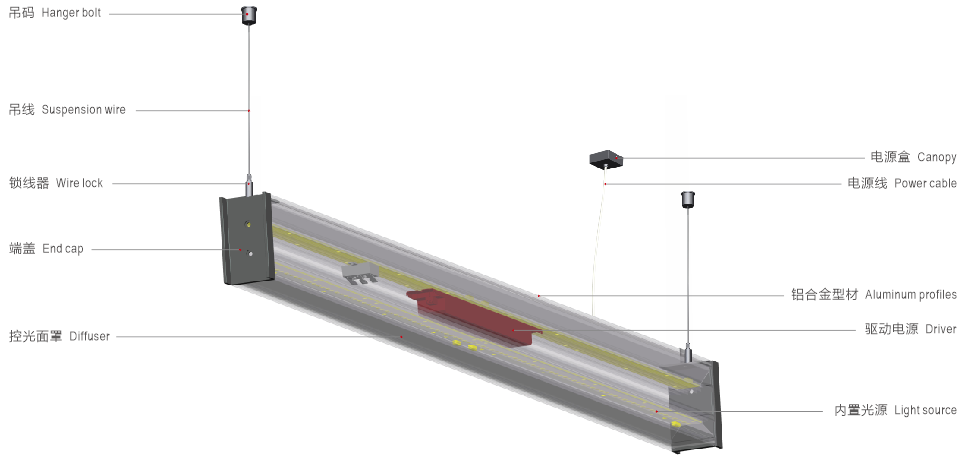

Details：

Standard single fitting：
