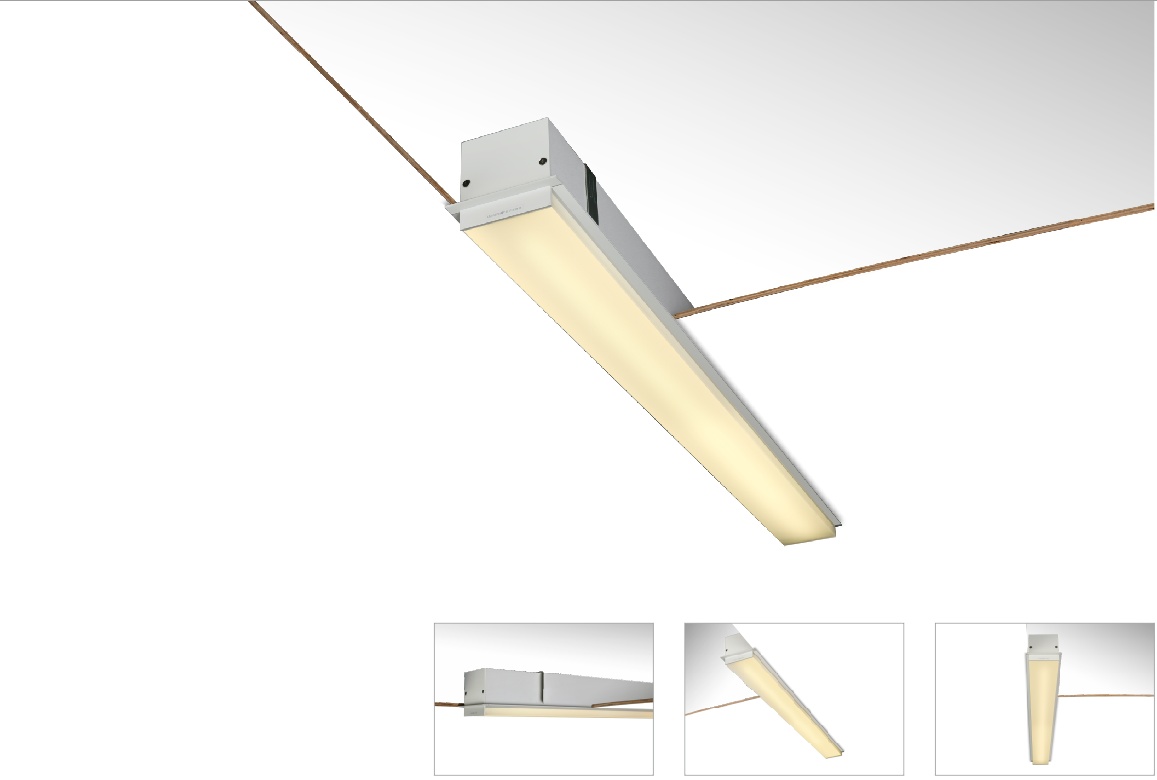

Nimble- L recessed luminaires736B



Description:

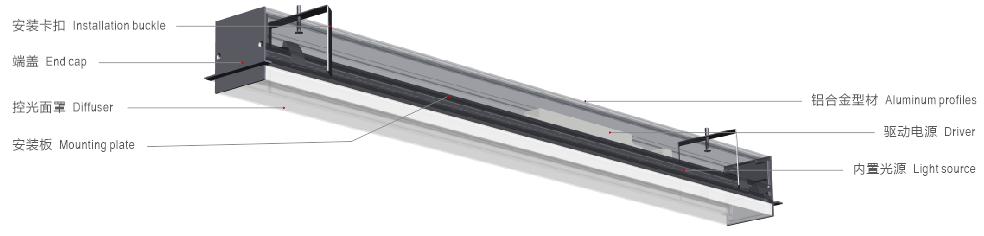

736B Specification Grade Plaster Ceiling recess mount with Trim linear LED Luminaire. Housing made of high pressure extruded aluminum construction, Die-cast aluminum end cap. UV and Corrosion resistance, with durable, anti-fading and anti-scratch Electrostatic Thermo-painting finish in Architectural Silver Grey or Matt White. (Other colors available upon request).  Slim Compact series with Germany imported high transmittance PMMA diffuser specially designed for LED light sources creating smooth and uniform lighting distributions (LED Dots-Free illumination), high visual comfort for all lighting applications. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. 736 series are also available in seamless continuous lighting system without visible dark spot or light gaps. Customized your own unique lighting system with our latest addition of system connection module accessories (L-shape / Cross-shape / T-shape). Simple and easy installation for every user.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.


Technical Data


Product name: 736B Recessed luminaire
Type: Recessed
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMAA
Light source: SMD
Light source efficiency: 105lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ


Details



Standard single fitting



Item No

Power(W)

Light type

Flux(lm)

CCT(K)

color

L*W*H(mm)

736B-RM1160T18W

18W

SMD

1890 lm

3000/4000/6500

White

1160*116*100

736B-RM1720T27W

27W

SMD

2835 lm

3000/4000/6500

White

1720*116*100

736B-RM2280T36W

36W

SMD

3780 lm

3000/4000/6500

White

2280*116*100

736B-RM1160T36W

36W

SMD

3780 lm

3000/4000/6500

White

1160*116*100

736B-RM1720T54W

54W

SMD

5670 lm

3000/4000/6500

White

1720*116*100

736B-RM2280T72W

72W

SMD

7560lm

3000/4000/6500

White

2280*116*100
