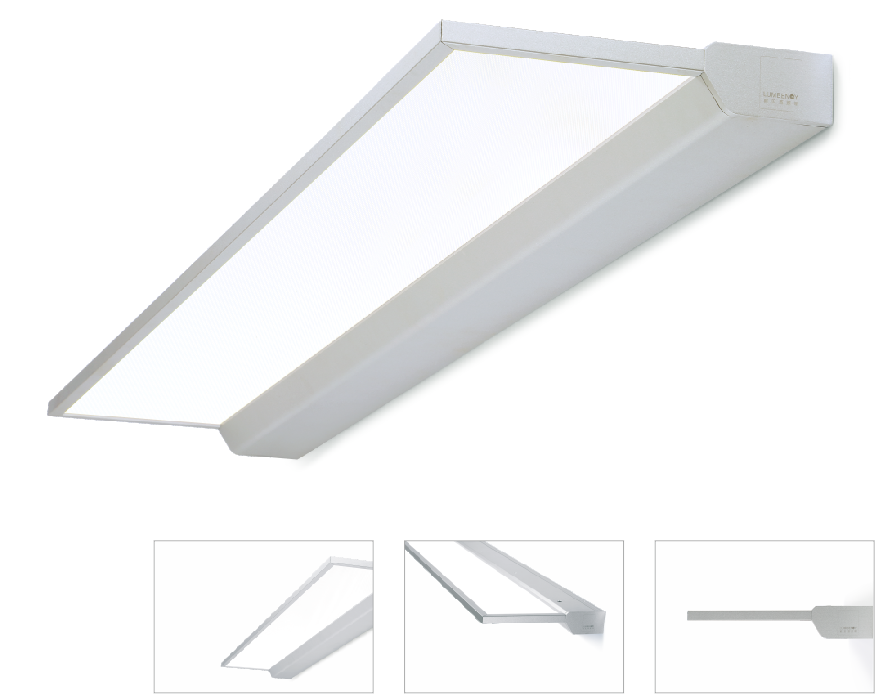

Stary Wall mounted luminaires 740


Description:

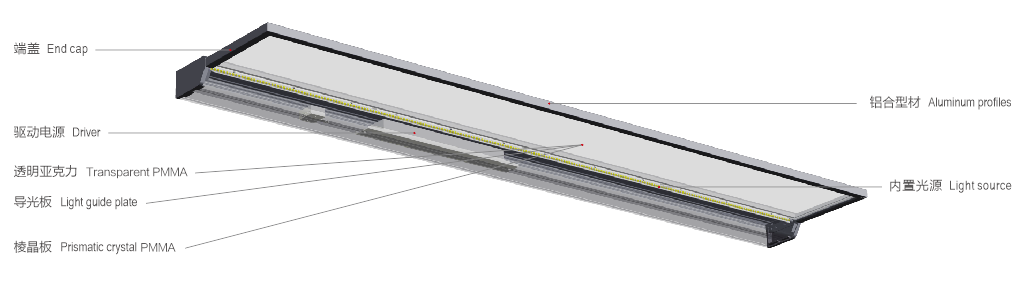

740 series wall lamp with aluminum alloy structure integrated with advanced side light transmittance technology, direct and indirect light illuminating, high transmitting optical light guide PMMA plate create shadow free and uniform light output without any glare. Advance thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. Suspended, ceiling surface mounted lamp, wall lamp, floor lamp, desk reading lamp are available for 740 series.
Applications: Offices, schools, hospitals, hotels, shopping malls, public buildings, airport halls etc.


Technical Data


Product name: 740 Wall mounted luminaire
Type: Wall mounted
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 85 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ



Details




Standard single fitting


Item No Power(W) Light type Flux(lm) CCT(K) Color

L*W*H(mm)

740-VS590T18W
18W
SMD
1530 lm
3000/4000/6500
Silver 590*225*40
740-VS1150T36W 36W SMD 3060 lm 3000/4000/6500 Silver 1150*225*40
