Description：

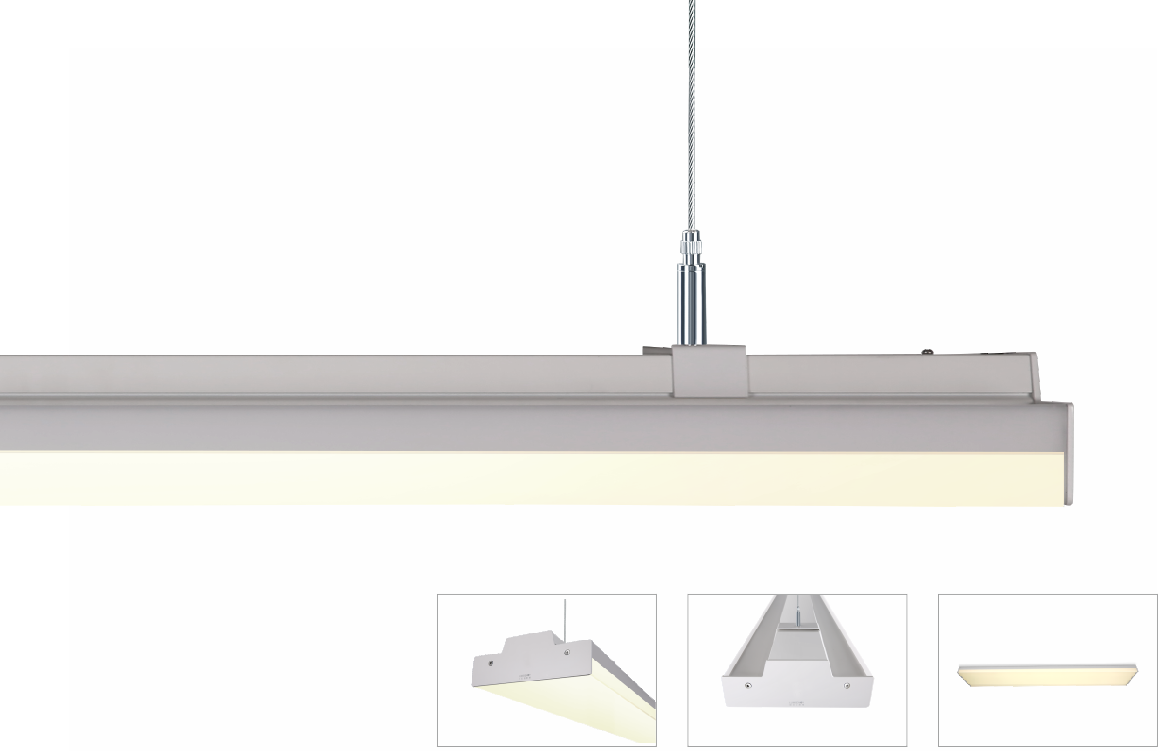

747B specification Grade Suspend mounted linear LED Luminaire. Housing made of high pressure extruded aluminum construction, With beautiful appearance, the scientific proportion and reasonable dimensions strong and beautiful outline. High-quality anti-glare PC diffuser is special designed for LED light wave and it covers the whole lamp body, trimless, 180 degree lighting beam angle. Uniform lighting distributions, looks more beautiful. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.Single lamp can do up to 6000mm.
Applications: Offices, Educational Institutes, Hospitals, Shopping malls, department stores, Hospitality, Public buildings, Stations and Airport,  metro,Etc.

Technical Data：

Product name: 747B Suspended/Ceiling surface mounted luminaire
Type: Suspended/Ceiling surface mounted
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PC
Light source: SMD
Lumina ire efficiency: 98 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

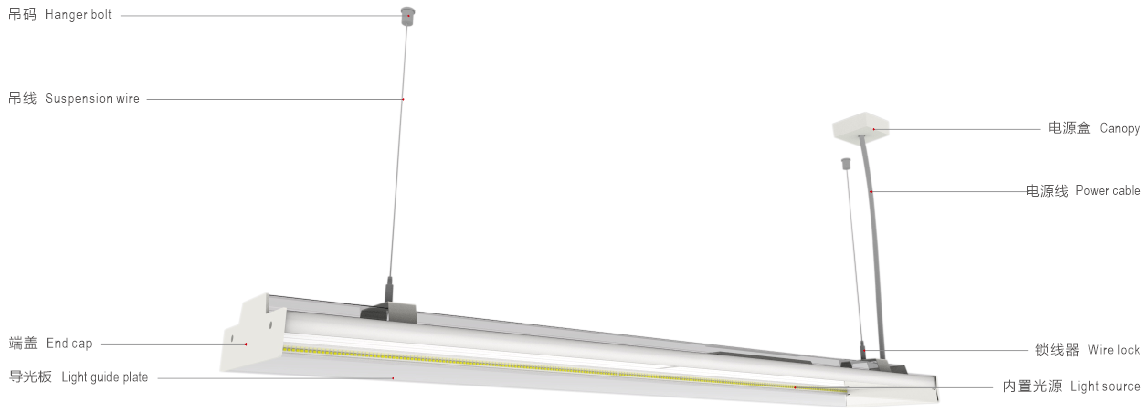

Details：
