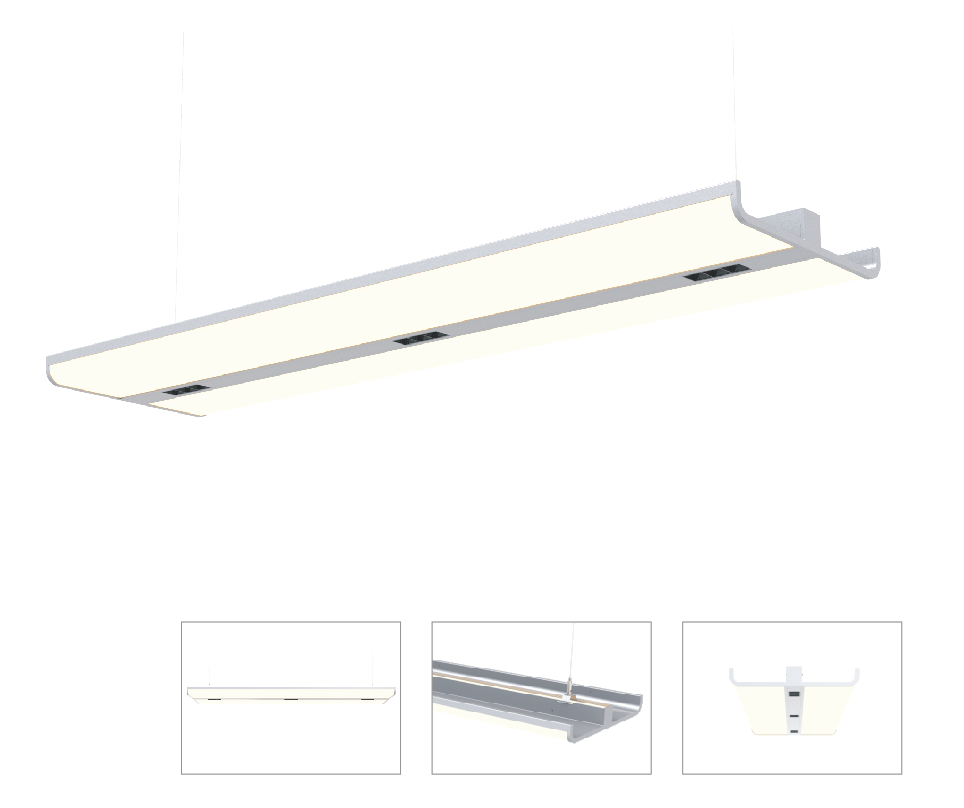

750 Suspended luminaire



Description:

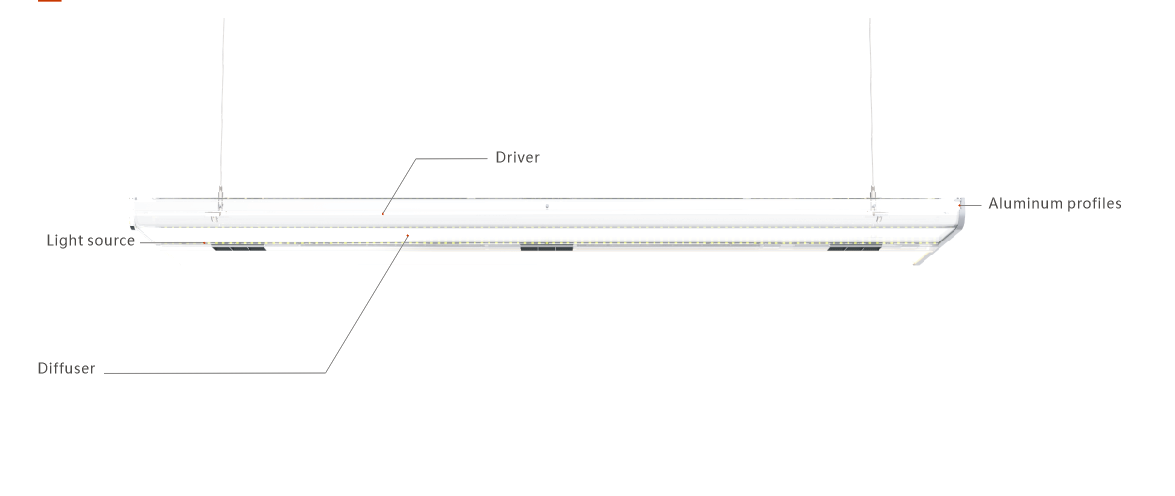

750 Sky series suspended /ceiling surface mounfed luminaire, housing made of high quality aluminum alloy profile, the scientific appearance proportion, reasonable dimension of structure and graceful smooth line, soft and wide light output, together with industry-leading light guiding plate technology, allow users to experience a light space with larger emitting surface. Advanced side-light emitting technology with direct/indirect light distribution and accent lighting mode of point light, bring different lighting environment experience. Plus the high transmittance optical level pure PMMA light guiding plates assured shadowless light distribution and make better effects in anti-glare control. The advanced thermal management technology with high effiency of heat dissipation guaranteed the continuous maximum output of the light and consistency of color temperature.750 sky series include suspended lamps, ceiling lamps, wall lamps, floor lamps, desk reading lamps, etc.
Applications: Offices, Schools, Hospitals, Hotels, Shopping malls, Public buildings, Airports and Stations, etc.





Technical Data



Product name: 750-S/750U-S/750-C Suspended luminaire/Ceiling surface mounted luminaire
Type: Suspended luminaire/Ceiling surface mounted luminaire
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 75 lm /W
CRI: ≥83
Color temperature: 3000K / 4000K / 5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 50000h
Electrical grade: Ⅰ





Details





Standard single fitting



Item No Power(W) Light type Flux(lm) CCT(K) Color

Size(mm)

750-SS1200T36W
36
SMD 2600 3000/4000/5700
silver
1200*320*48
750-SS1200T54W
54
SMD
3600 3000/4000/5700
silver
1200*320*48
750U-SS1200T54W
54 SMD
4400 3000/4000/5700
silver
1200*320*48
750U-SS1200T72W
72 SMD
5400 3000/4000/5700
silver
1200*320*48
