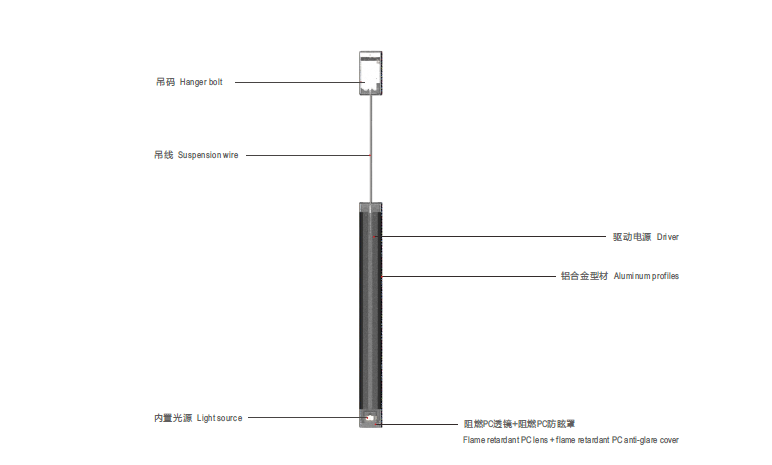

Jago Suspended luminaire 904

Description:

904 series suspend mounted linear LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws, Electrostatic thermo-painting finish on housing and Flame retardant PC lens + flame retardant PC anti-glare cover，UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminaire adopted TIR optic-control technology, achieve unification between precise control and high efficiency. Getting better with the “Lumbency curve” that brought by unique soft switch technology. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc

Technical Data：

Product name: 904 Suspended luminaire
Type: Suspended
Housing material:High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting finish on housing (silver/brown gray)
Diffuser material: Flame retardant PC lens + flame retardant PC anti-glare cover
Light source: SMD
Lumina ire efficiency: 80 lm /W
CRI: > 83
Color temperature: 3000K / 4000K / 6500K
Input voltage: 220V / 50Hz
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:

Details：

Standard single fitting：

Item No	Power（W）	Light type	Flux（lm）	CCT（K)	Color	Size（mm）
904-SB150A3W	3	SMD	250	3000/4000/5700	silver/brown gray	1502828
904-SB300A3W	3	SMD	250	3000/4000/5700	silver/brown gray	3002828
904-SB450A3W	3	SMD	250	3000/4000/5700	silver/brown gray	4502828
904-SB200A5W	5	SMD	410	3000/4000/5700	silver/brown gray	2004040
904-SB400A5W	5	SMD	410	3000/4000/5700	silver/brown gray	4004040
904-SB600A5W	5	SMD	410	3000/4000/5700	silver/brown gray	6004040
