Description:

117 Track/Ceiling Mounted spot light technical data sheet down light LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is Electrostatic thermo-painting and Flame retardant PC lens + flame retardant PC anti-glare cover，UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminaire adopted TIR optic-control technology, achieve unification between precise control and high efficiency. Getting better with the “Lumbency curve” that brought by unique soft switch technology. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.

Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.

Technical Data：

Product name: 117 Track/Ceiling Mounted spot light technical data sheet
Type: Rectangle down light
Housing material:High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting (White/black/brown gray)
Diffuser material: Flame retardant PC lens + flame retardant PC anti-glare cover
Light source: SMD
Lumina ire efficiency: 80 lm /W
CRI: > 83
Color temperature: 3000K / 4000K
Input voltage: 220V / 50Hz
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅱ

Details：

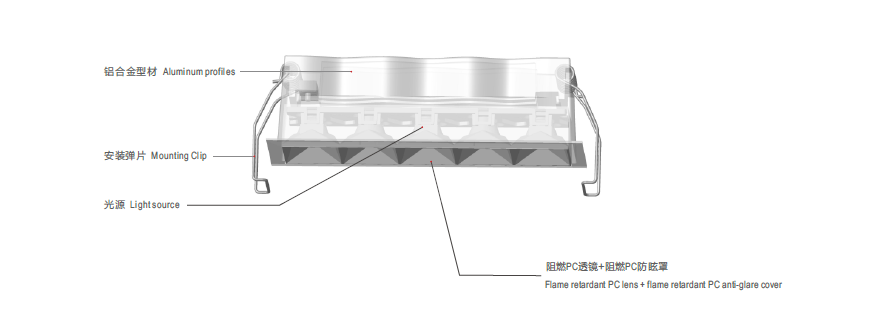

Standard single fitting：
