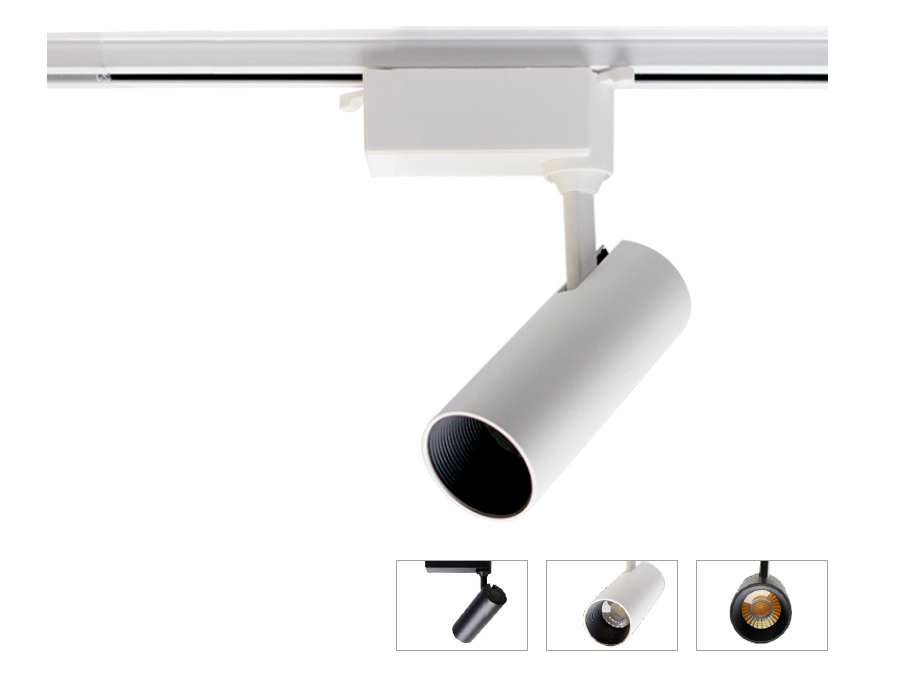

SU Track Spot light


Description:


112 T/C Track Spot light  with high quality aluminum alloy in durable corrosion resistance, anti-fading and anti-scratch electrostatic thermo-painting finish. Professionally reflector designed according to different LED wave length well optimized the optical property and at the same time achieved the maximum lighting efficiency, Advance thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. Both track and ceiling mounted installed version are available.
Applications: Shopping malls, specialty stores, hotels, exhibitions and other places.


Technical Data


Product name:112 T/C Spot light

Type: Track  spot  light

Housing material: High quality aluminum alloy

Light source: COB

Luminaire ire efficiency: 75 lm /W

CRI: >83

Color temperature: 3000K/4000K/5700K

Input voltage: 220-240V

Driver: High efficiency driver

Lifespan: 30000h

Electrical grade:  II



Details





Standard single fitting



Item No Power(W) Light type Flux( lm ) CCT(K) Color

Size(mm)

112-TM65A20W-15°
20 COB 1470 3000/4000/5700
white
φ65*160
112-TM65A20W-24°
20
COB
1470
3000/4000/5700
white
φ65*160
112-CM65A20W-15°
20 COB
1470
3000/4000/5700
white
φ65*160
112-CM65A20W-24°
20
COB
1470
3000/4000/5700
white
φ65*160
