Description:

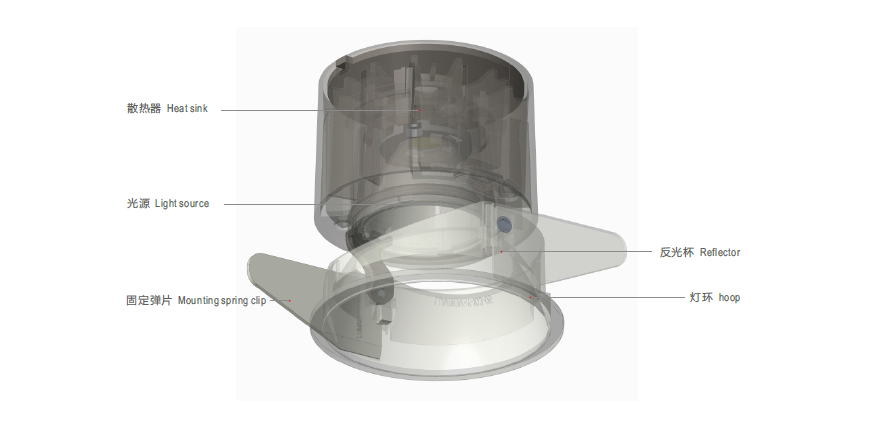

103 Spot down light, made of high-quality die cast aluminum heatsink and optic anti-glare PC reflector, delicate structure,concise and aesthetic appearance,easy installation,sturdy and durable.Advanced thermal management technology to ensure continuity of LED light span, consistency of color temperature and maximize output lumens.
Applications: Shopping malls, specialty stores, hotels, exhibitions etc.
Technical Data：
Type: spot light
Housing material: Die cast aluminum+Anti-glare PC Reflector
Light source: COB
Luminaire ire efficiency: 88 lm /W
CRI: >83
Color temperature: 3000K/4000K/5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: II
Details：
Standard single fitting：
| Item No | Power（W） | Light type | Flux( lm ) | CCT（K) | Color |
Size（mm） |
|
103-RM83A10W-15° |
10 | COB | 900 |
3000/4000/5700 |
white |
φ83*80 |
|
103-RM83A10W-24° |
10 |
COB |
900 |
3000/4000/5700 |
white |
φ83*80 |
|
103-RM83A10W-36° |
10 |
COB |
900 |
3000/4000/5700 |
white |
φ83*80 |
|
103A-RM83A10W-15° |
10 |
COB |
900 |
3000/4000/5700 |
white |
φ83*80 |
|
103A-RM83A10W-24° |
10 |
COB |
900 |
3000/4000/5700 |
white |
φ83*80 |
|
103A-RM83A10W-36° |
10 |
COB |
900 |
3000/4000/5700 |
white |
φ83*80 |
