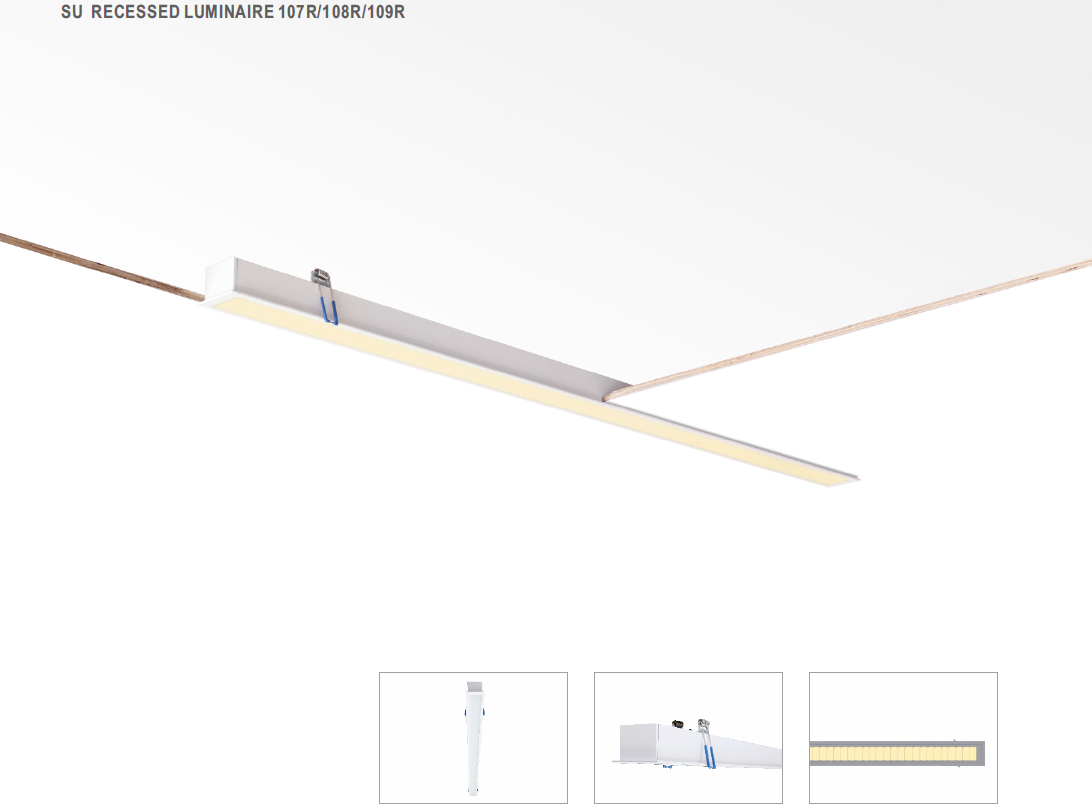

SU Recessed light



Description:



108R Recessed  mouted linear LED luminarie,with trim, housing made of high-pressure extruded aluminum construction, die-cast aluminum end caps,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods,  excellent heat dissipation. The luminarie  applying anti-glare diffuser ,high transmittance PC/PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions high visual comfort for al lighting applications, without visible dark spot . Advanced thermal management technology to ensure consistency of LED life span, consistency of color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.



Technical Data



Product name: 108 Recessed luminaires

Type:  Recessed luminaires

Housing material: High-quality Aluminum alloy

Surface finish: Electrostatic thermo-painting (white)

Diffuser material:PC/PMMA

Light source: SMD

Luminaire efficiency: 110 lm /W

CRI: >83

Color temperature: 4000K

Input voltage: 220-240V

Driver: High efficiency driver

Lifespan: 30000h

Electrical grade:

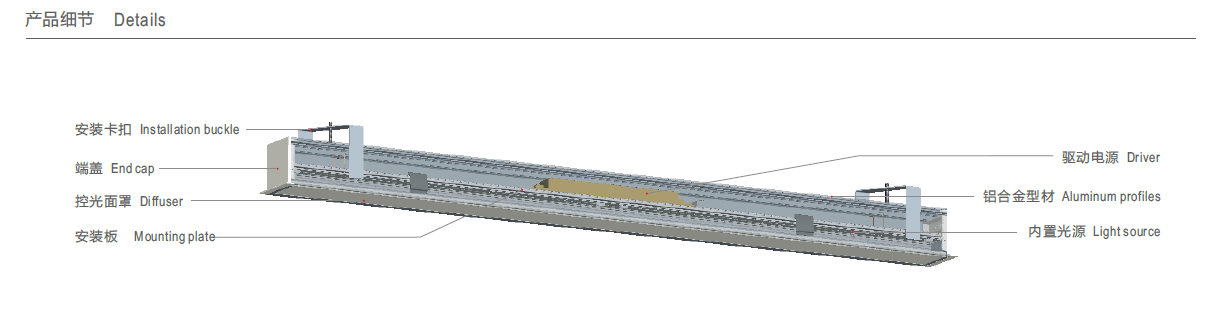

Details





Standard single fitting


Item No Power(W) Light type Flux(lm) CCT(K) Color

Size(mm)

108-RM1130T36W
36 SMD
3960 4000
White 1130*80*73
108-RM1690T54W
54 SMD
5940 4000
White  1690*80*73
108-RM2250T72W
72 SMD
7920 4000
White 2250*80*73
108-RM1130I36W
36
SMD
3960
4000
White
1130*80*73
108-RM1690I54W
54
SMD
5940
4000
White
1690*80*73
108-RM2250I72W
72
SMD
7920
4000
White
2250*80*73
