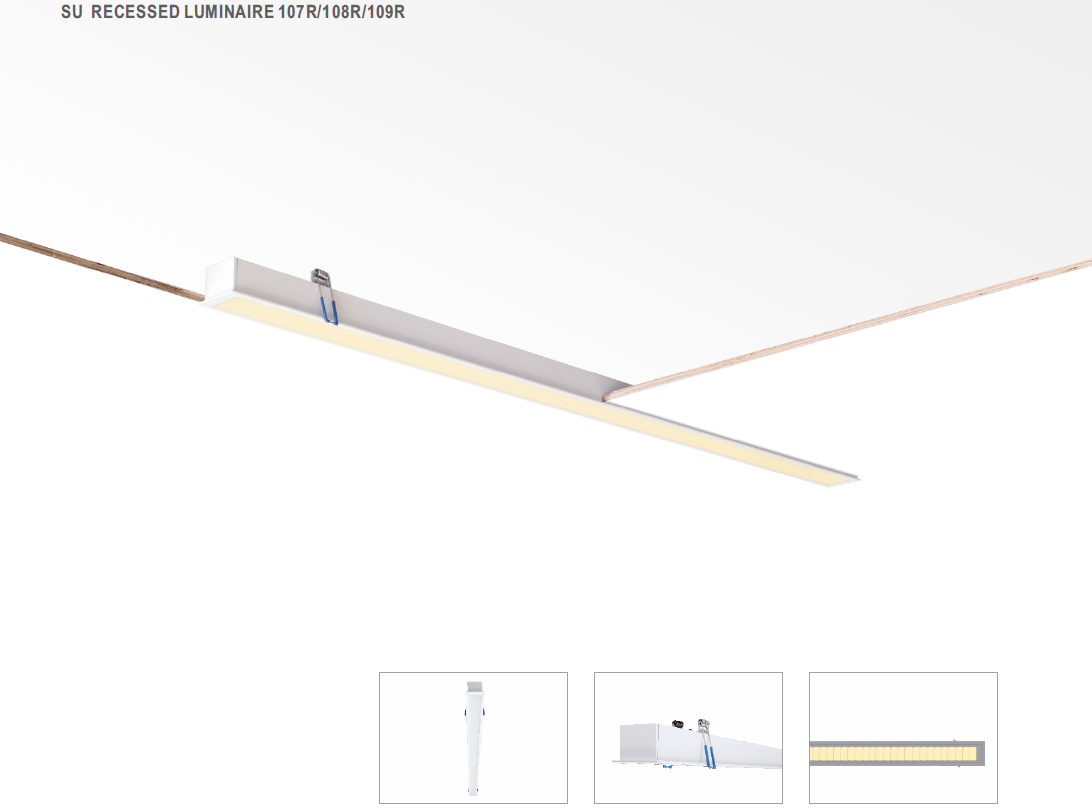

SU Recessed light

Description:

107R Recessed mounted linear LED luminarie, with trim, housing made of high-pressure extruded aluminum construction, die-cast aluminum end caps,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, excellent heat dissipation. The luminarie applying anti-glare diffuser ,high transmittance PC/PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions high visual comfort for al lighting applications, without visible dark spot . Advanced thermal management technology to ensure consistency of LED life span, consistency of color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.

Technical Data：

Product name: 107 Recessed luminaires

Type: Recessed luminaires

Housing material: High-quality Aluminum alloy

Surface finish: Electrostatic thermo-painting (white)

Diffuser material:PC/PMMA

Light source: SMD

Luminaire efficiency: 110 lm /W

CRI: >83

Color temperature: 4000K

Input voltage: 220-240V

Driver: High efficiency driver

Lifespan: 30000h

Electrical grade: Ⅰ

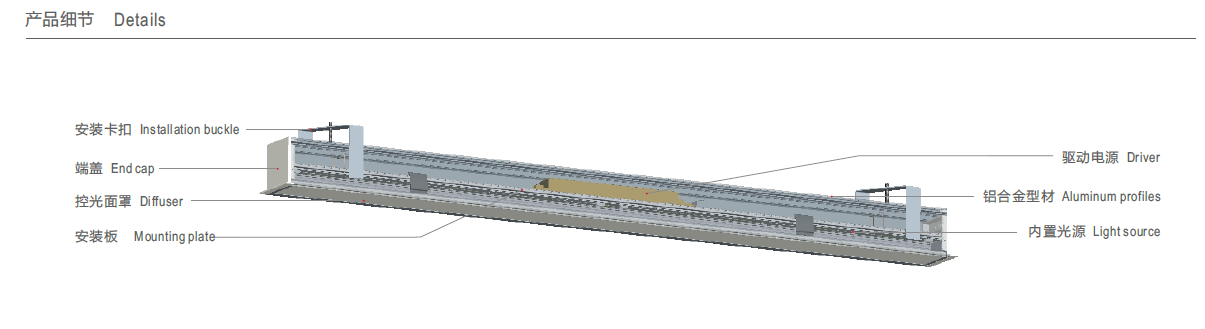

Details：

Standard single fitting：

Item No	Power（W）	Light type	Flux（lm）	CCT（K)	Color	Size（mm）
107-RM1130T36W	36	SMD	3638	4000	White	11305569
107-RM1690T54W	54	SMD	5457	4000	White	16905569
107-RM2250T72W	72	SMD	7276	4000	White	22505569
107-RM1130I36W	36	SMD	3638	4000	White	11305569
107-RM1690I54W	54	SMD	5457	4000	White	16905569
107-RM2250I72W	72	SMD	7276	4000	White	22505569
