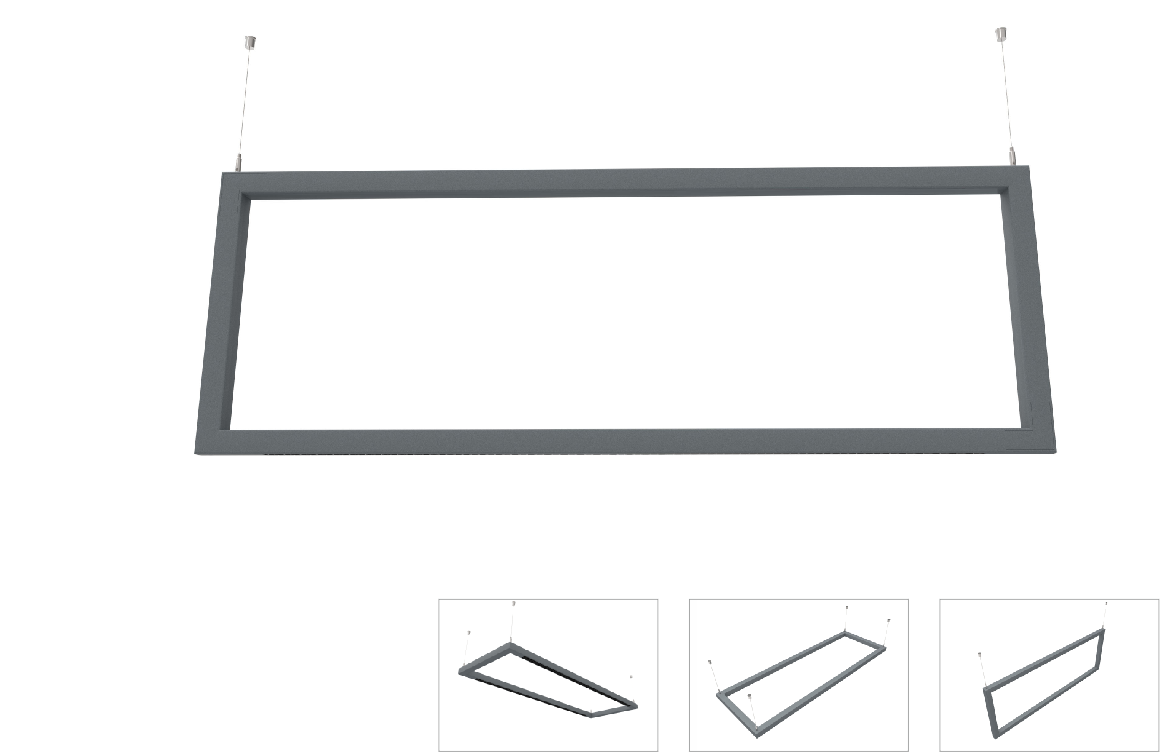

Jago Suspended luminaire 901A/B



Description:

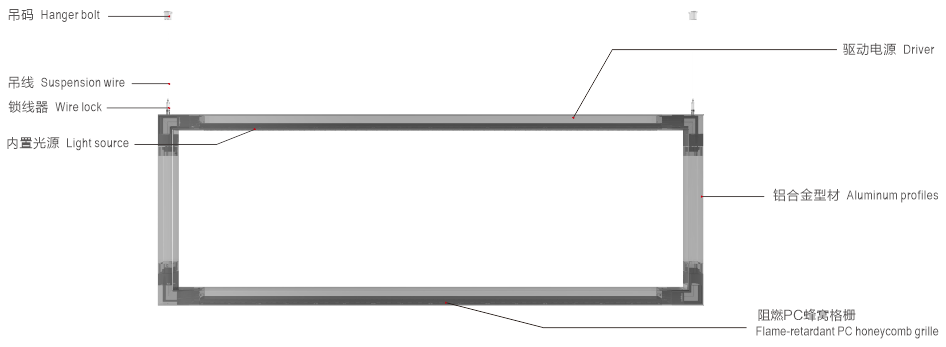

901A/B series suspend mounted linear LED luminarie, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame retardant PC honeycomb grille mask,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie combined with the concept of indirect/direct lighting distributions, applying anti-glare diffuser and double transmission principle of secondary reflection, Flame-retardant PC honeycomb grille, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.



Technical Data



Product name: 901A/B Suspended luminaire
Type: Suspended luminaire
Housing material: High-quality Aluminum alloy
Surface finish: Fine sand oxidation (silver/brown gray/black)  Matte powder coating (matte white)
Diffuser material:Flame-retardant PC honeycomb grille
Light source: SMD
Luminaire efficiency: 90 lm /W
CRI: 90
Color temperature: 3000K/ 4000K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:




Details





Standard single fitting


Item No Power(W) Light type Flux(lm) CCT(K) Color

Size(mm)

901A-SB1200H36W 36W SMD 3240 lm 3000/4000/6500K Silver / White
Brown gray / Black
1200*320*40
      901A-SB1800H54W
                           54W
      SMD
      4860 lm
      3000/4000/6500K
Silver / White
Brown gray / Black

   1800*320*40
      901A-SB1200H72W
                           72W
       SMD
      6480 lm
      3000/4000/6500K
Silver / White
Brown gray / Black

   1200*320*40
      901A-SB1800H108W
                           108W
       SMD
      9720 lm
      3000/4000/6500K
Silver / White
Brown gray / Black

   1800*320*40
      901B-SB1200H36W
                           36W
       SMD
      3240 lm
      3000/4000/6500K
Silver / White
Brown gray / Black

   1200*40*320
     901B-SB1800H54W
                           54W
       SMD
      4860 lm
      3000/4000/6500K
Silver / White
Brown gray / Black

   1800*40*320
     901B-SB1200H72W
                          72W
       SMD
      6480 lm
      3000/4000/6500K
Silver / White
Brown gray / Black

    1200*40*320
     901B-SB1800H108W
                          108W
       SMD
      9720 lm
      3000/4000/6500K
Silver / White
Brown gray / Black

   1800*40*320
