Jago Ceiling surface mounted luminaires 904



Description:

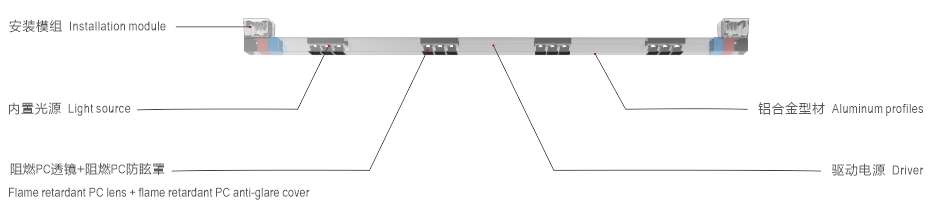

904 series ceiling surface mounted linear LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame retardant PC lens + flame retardant PC anti-glare cover,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie combined with the concept of indirect/direct lighting distributions, applying anti-glare diffuser and double transmission principle of secondary reflection, Flame-retardant PC honeycomb grille, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.



Technical Data


Product name: 904 Ceiling surface mounted luminaire
Type: Ceiling surface mounted luminaire
Housing material: High-quality Aluminum alloy
Surface finish: Fine sand oxidation (silver/brown gray/black) Matte powder coating (matte white)
Diffuser material:Flame retardant PC lens + flame retardant PC anti-glare cover
Light source: SMD
Luminaire efficiency: 80 lm /W
CRI: 90
Color temperature: 3000K/ 4000K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:

 Details




Standard single fitting


Item No Power(W) Light type Flux(lm)  CCT(K) Color

Size(mm)

   904-CB1200T18W 18W SMD 1440 lm 3000/4000/6500K Silver / White
Brown gray / Black
1200*53*86
           904-CB1800T27W
                                   27W
         SMD
        2160 lm
       3000/4000/6500K
        Silver / White
     Brown gray / Black

    1800*53*86
           904-CB1200T36W
                                   36W
        SMD
        2880 lm
       3000/4000/6500K
        Silver / White
     Brown gray / Black

    1200*53*86
           904-CB1800T54W
                                   54W
        SMD
        4320 lm
       3000/4000/6500K
        Silver / White
     Brown gray / Black

    1800*53*86
