Jago Ceiling surface mounted luminaires 904A



Description:

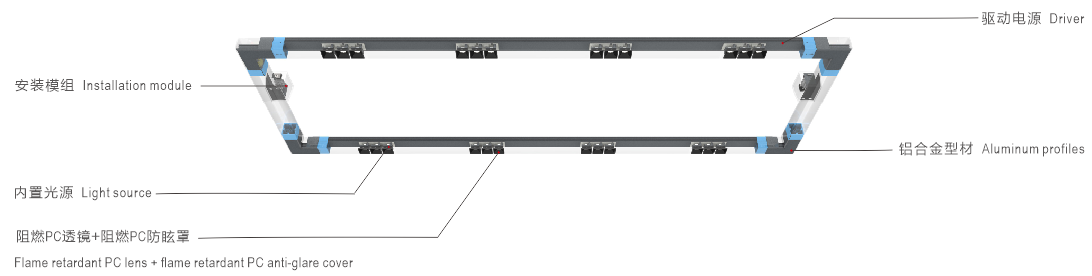

904A series ceiling surface mounted linear LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame retardant PC lens + flame retardant PC anti-glare cover,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie adopted TIR optic-control technology,achieve unification between precise control and high efficiency.Getting better with the "Lumbency curve" that brought by unique soft swithch technology. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.

Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.



Technical Data


Product name: 904A Ceiling surface mounted luminaire
Type: Ceiling surface mounted luminaire
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting finish on housing (silver/brown gray)
Diffuser material:Flame retardant PC lens + flame retardant PC anti-glare cover
Light source: SMD
Luminaire efficiency: 80 lm /W
CRI: 83
Color temperature: 3000K/ 4000K /5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:

 Details




Standard single fitting


Item No Power(W) Light type Flux(lm) CCT(K) Color

Size(mm)

904A-CB1200A36W 36 SMD 2900 3000/4000/5700 Silver/ Brown gray 1200*320*86
904A-CB1800A54W
54
SMD
4340
3000/4000/5700
Silver/ Brown gray
1800*320*86
904A-CB1200A72W
72 SMD
5780
3000/4000/5700
Silver/ Brown gray 1200*320*86
904A-CB1800A108W
108
SMD
8660
3000/4000/5700
Silver/ Brown gray
1800*320*86
904A-CB2400A72W
72 SMD
5780 3000/4000/5700
Silver/ Brown gray
2400*320*86
