Jago Suspended /Ceiling surface-mounted continuous row 900



Description:


900 series flexible combination with adapter Systematization LED luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws,  Surface treatment is the sand oxidation and Flame-retardant PC honeycomb grille + flame-retardant PC lens + flame retardant PC anti-glare cover,UV and corrosion resistance, with beautiful appearance, the scientific proportion and reasonable dimensions, flexible installing methods, light body, excellent heat dissipation. The luminarie adopted TIR optic-control technology,achieve unification between precise control and high efficiency.Getting better with the "Lumbency curve" that brought by unique soft swithch technology. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.





Technical Data


Product name: 900  Suspended /Ceiling surface-mounted continuous row
Type: Continuous lighting system
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting (silver/brown gray)

Diffuser material:Flame-retardant PC honeycomb grille + flame-retardant PC lens + flame retardant PC anti-glare cover
Light source: SMD
Luminaire efficiency: 90 lm /W
CRI: 83
Color temperature: 3000K/ 4000K / 5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:

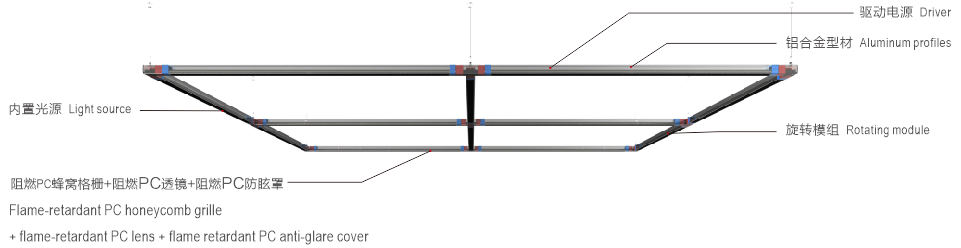

 Details

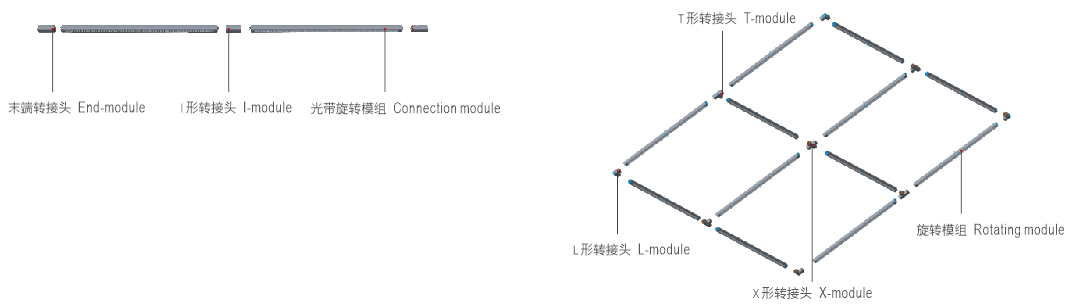

Connection module

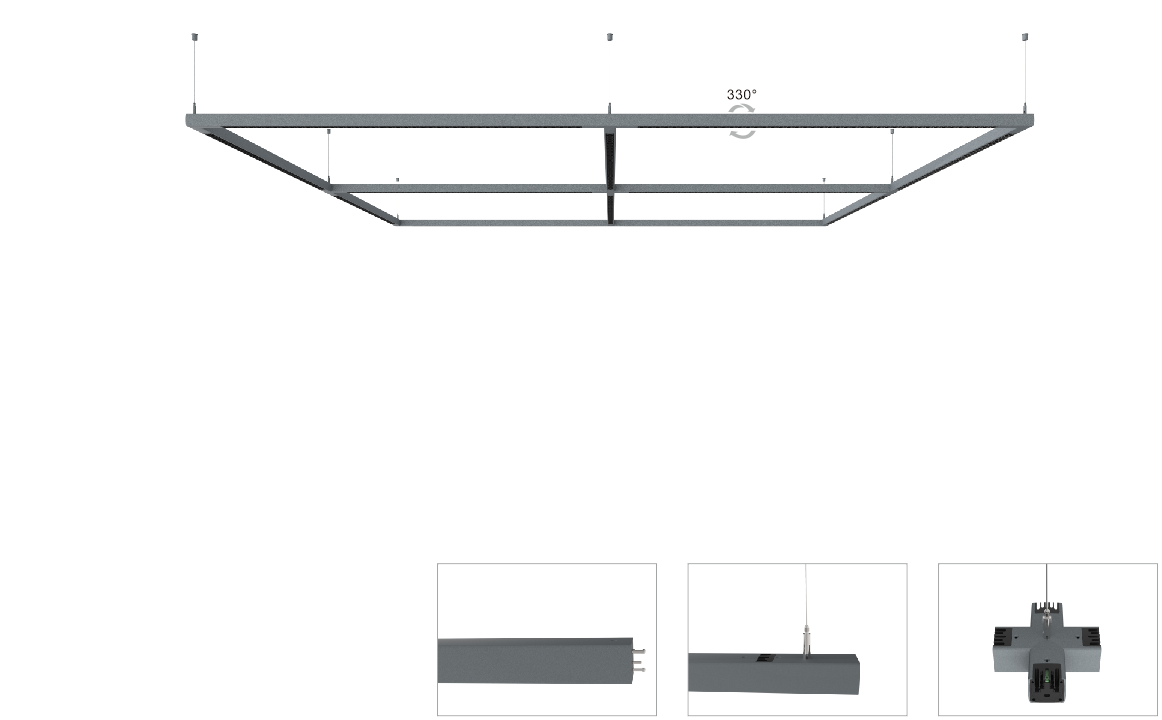

Continuous connection demonstration






Connection module




Continuous connection demonstration









Standard single fitting



Item No Power(W) Light type Flux(lm) CCT(K) Color

Size(mm)

900-SB300H9W 9 SMD 830 3000/4000/5700
Silver / Brown gray
300*51*51
900-SB600H18W
18
SMD
1640
3000/4000/5700
Silver / Brown gray
600*51*51
900-SB1200H36W
36
SMD
3260 3000/4000/5700
Silver / Brown gray
1200*51*51
900-SB1800H54W
54
SMD
4880
3000/4000/5700
Silver / Brown gray
1800*51*51
900-SB1800H72W
72 SMD
6480 3000/4000/5700
Silver / Brown gray
1800*51*51
900A-SB300A9W
9
SMD
830 3000/4000/5700
Silver / Brown gray
300*51*51
900A-SB600A18W
18
SMD
1640
3000/4000/5700
Silver / Brown gray
600*51*51
900A-SB1200A36W 36 SMD
3260
3000/4000/5700
Silver / Brown gray
1200*51*51
900A-SB1800A54W 54 SMD
4880
3000/4000/5700
Silver / Brown gray
1800*51*51
900A-SB1800A72W
72 SMD
6480
3000/4000/5700
Silver / Brown gray
1800*51*51
