Infinity Suspended luminaires / continuous lighting 759




Description:


757 Suspend mounted linear LED Luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws, simple and easy installation, excellent heat dissipation. Available with fixed direct distributions and the indirect/direct distributions options,applying anti-glare diffuser and double transmission principle of secondary reflection, Slim Compact series with Germany imported high transmittance PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions,without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.
PMMA can be infinitely extended.



Technical Data


Product name: 757 Suspended/ceiling surface mounted luminaire/continuous lighting system
Type: Suspended / ceiling surface mounted luminaire
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 109 lm/W
CRI: ≥83
Color temperature: 3000K/ 4000K/ 5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

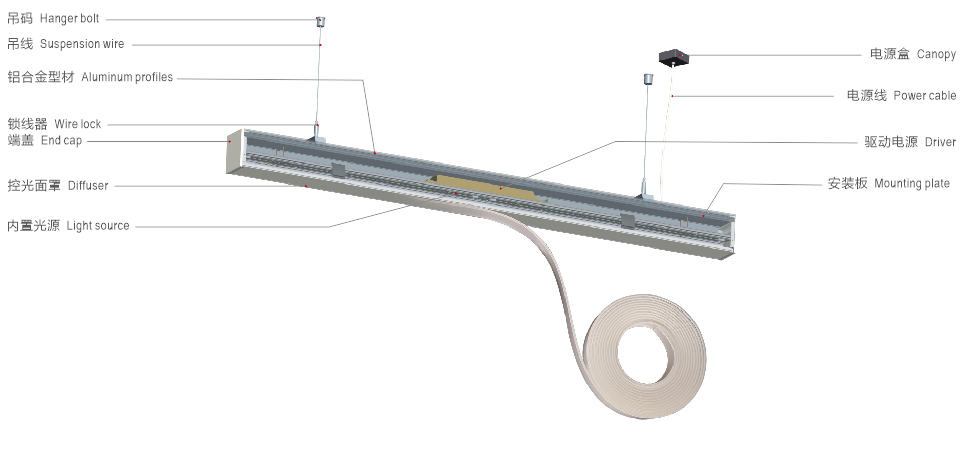

Details

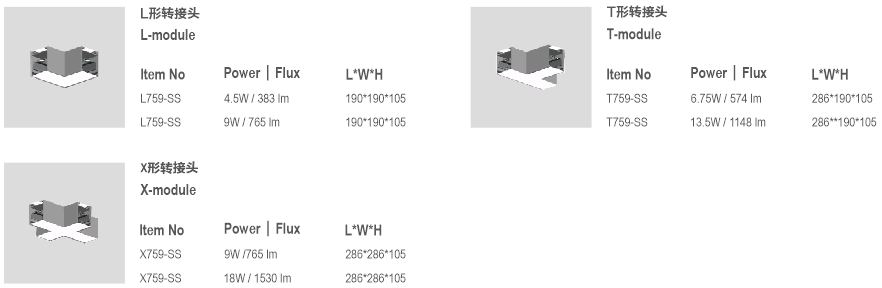

Connection module

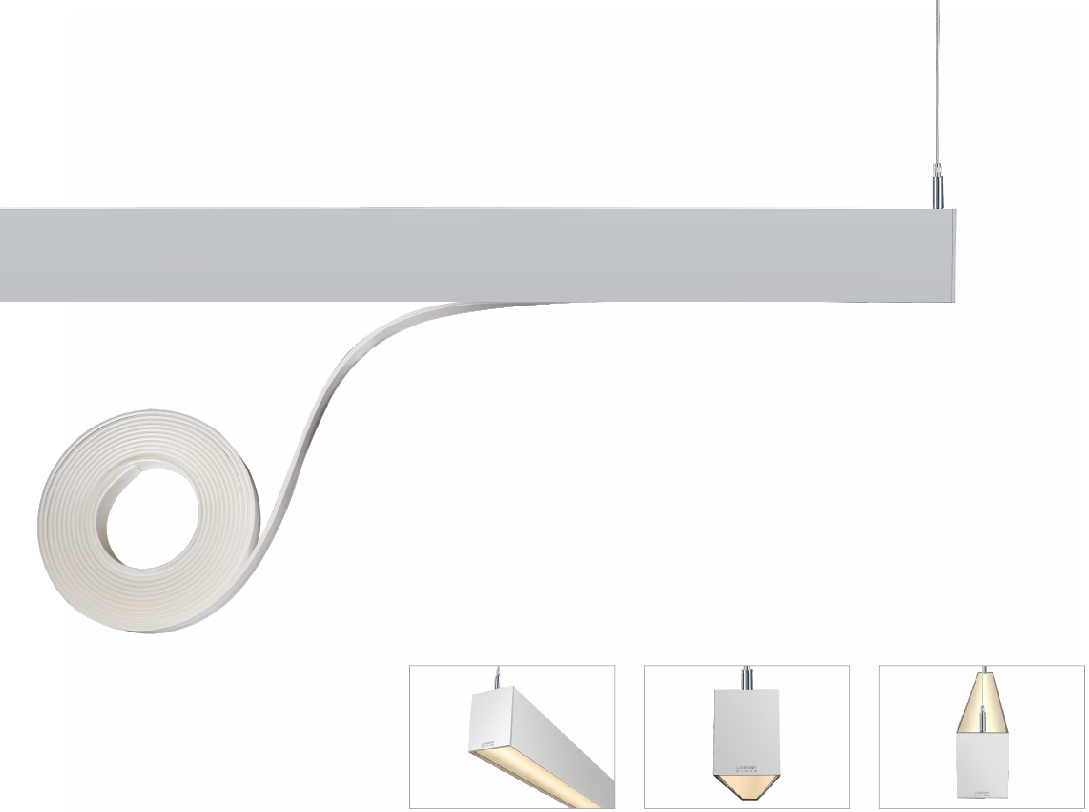

Continuous connection demonstration






Standard single fitting


Item No

Power(W)

Light type

Flux(lm)

CCT(K)

Color

L*W*H(mm)

759-SS1145T18W

18

SMD

1982

3000/4000/5700

Silver

1145*68*80

759-SS1145T36W

36

SMD

3944

3000/4000/5700

Silver

1145*68*80

759U-SS1145T36W
36 SMD
3944 3000/4000/5700
Silver
1145*68*80
759-CS1145T18W
18
SMD
1982
3000/4000/5700
Silver
1145*68*80
759-CS1145T36W
36
SMD
3944
3000/4000/5700
Silver
1145*68*80
