Infinity Recessed luminaires/continuous lighting 758



Description:


758 Specification Grade Plaster Ceiling recess mount with Trim linear LED Luminaire. Housing made of high pressure extruded aluminum construction, Die-cast aluminum end cap. UV and Corrosion resistance, with durable, anti-fading and anti-scratch Electrostatic Thermo-painting finish in Architectural Silver Grey or Matt White. (Other colors available upon request).  Slim Compact series with Germany imported high transmittance PMMA diffuser specially designed for LED light sources creating smooth and uniform lighting distributions (LED Dots-Free illumination), high visual comfort for all lighting applications. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. 736 series are also available in seamless continuous lighting system without visible dark spot or light gaps. Customized your own unique lighting system with our latest addition of system connection module accessories (L-shape / Cross-shape / T-shape). Simple and easy installation for every user.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.
PMMA can be infinitely extended.


Technical Data


Product name: 758 Recessed luminaire/continuous lighting system
Type: Recessed luminaires
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Lumina ire efficiency: 105 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/ 5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

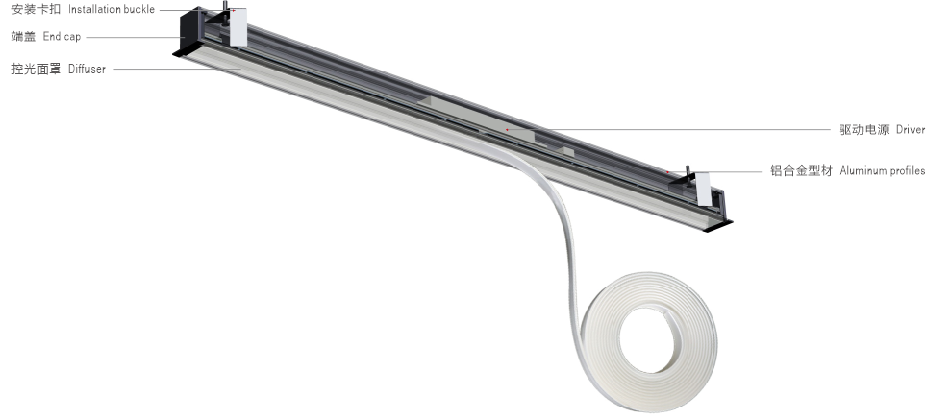

Details

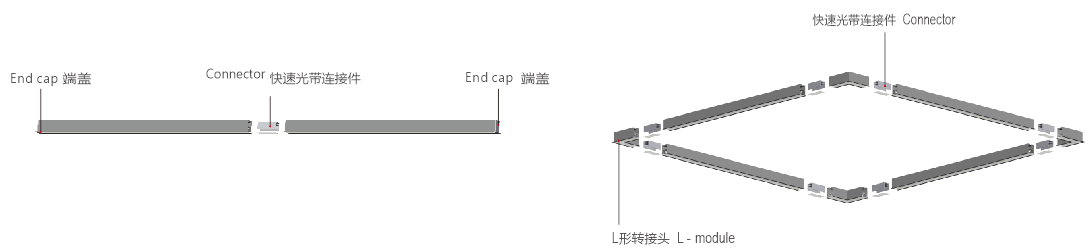

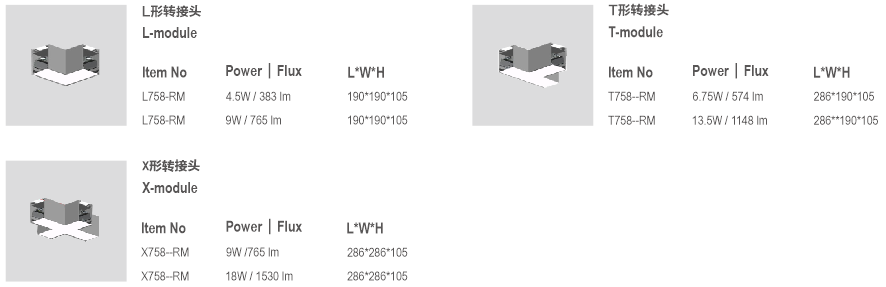

Connection module






continuous connection demonstration





Standard single fitting



Item No

Power(W)

Light type

Flux(lm)

CCT(K)

Color

Opening(mm)

L*W*H(mm)

758-RM1160T18W

18

SMD

1890

3000/4000/5700

White

1150*52

1160*60*60

758-RM1160T36W

36

SMD

3780

3000/4000/5700

White

1150*52

1160*60*60
