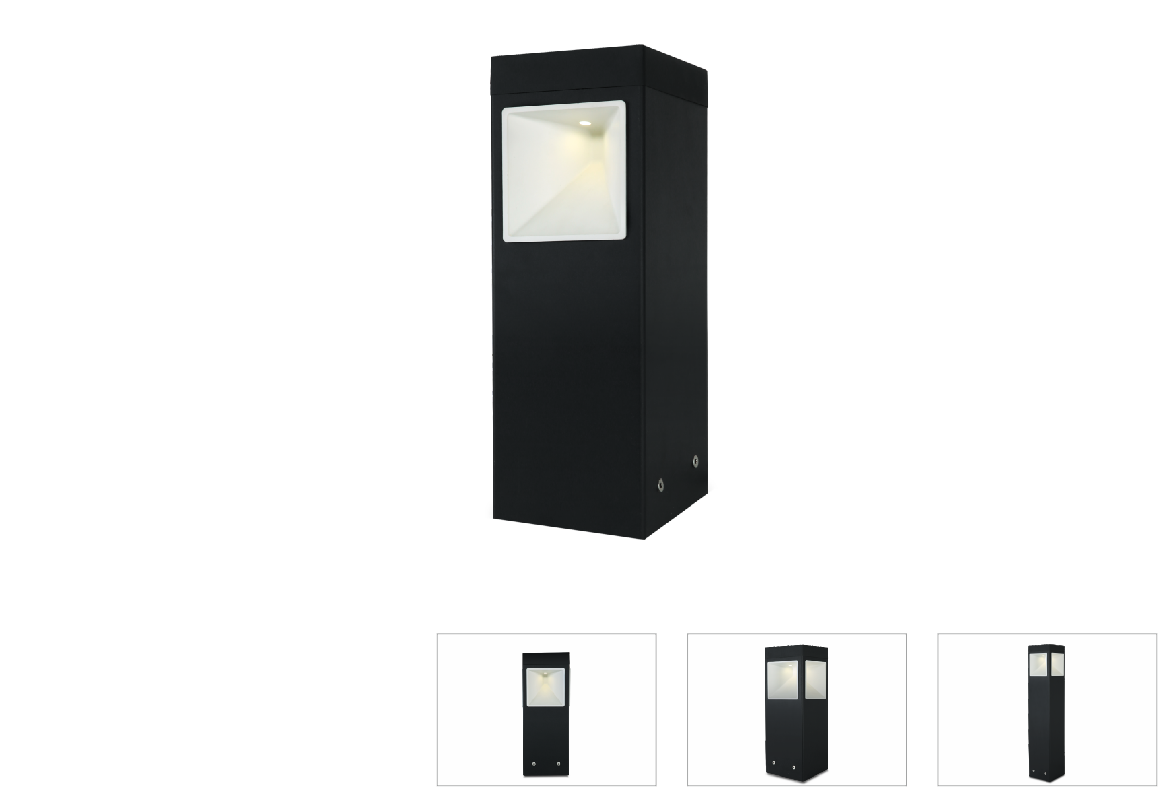

Oak Bollard luminaires 411-414



Description

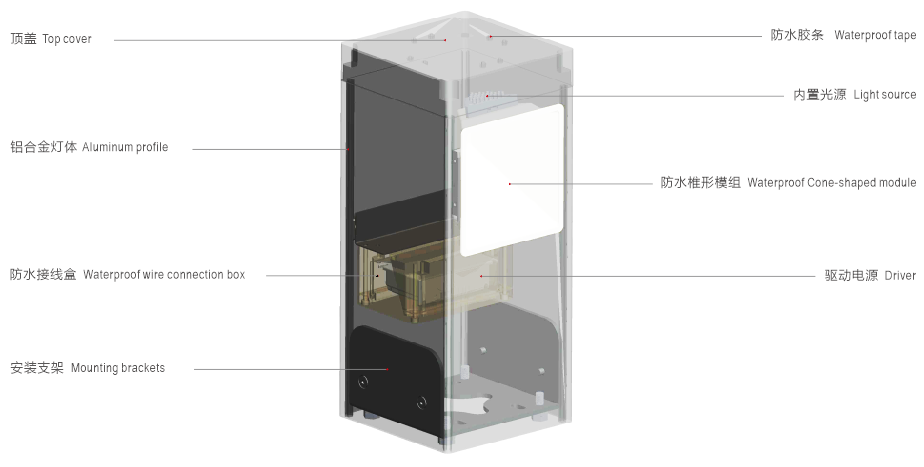

Oak series is one beautiful vandal-proof bollard lamp in IP65 with waterproof structure waterproof rating. Square aluminum die-casting top cover and all aluminum alloy structure with electrostatic powder coated finish; Standard height;350mm/750mm/2350mm; Customized height: Maximum 3600mm.The modularity allows the LED modular be flexible to locate at any height and its flexible make this bollard all-round functional lighting solution. Oak series included 411 series (1-way light)/412 series (2-way light)/413 series (3-way light)/414 series (4-way light);
Application: Outdoor ground Sidewalk, Garden and some other public;

Technical Data


Product name: 411-414 Bollard luminaires
Type: Bollard luminaires
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Light source: COB
Lumina ire efficiency: 50 lm /W
CRI: ≥80
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

Details





Standard single fitting



Item No Power(W) Light type Flux(lm ) CCT(K) color Size(mm)
411A-GH350T6W 6 COB 300 3000/4000/6500 White/Dark grey 150*150*350
411B-GH750T6W
6 COB 300
3000/4000/6500
White/Dark grey 150*150*750
411C-GH2350T6W
6
COB
300 3000/4000/6500
White/Dark grey
150*150*2350
      412A-GH350T12W
                           12       COB
         600        3000/4000/6500
        White/Dark grey
    150*150*350
      412B-GH750T12W
                           12
      COB
         600
       3000/4000/6500
       White/Dark grey
   150*150*750
      412C-GH2350T12W
                           12
      COB
         600
       3000/4000/6500
       White/Dark grey
    150*150*2350
      413A-GH350T18W
                           18
      COB
         900
       3000/4000/6500
      White/Dark grey
    150*150*350
      413B-GH750T18W
                           18
      COB
         900
       3000/4000/6500
        White/Dark grey
   150*150*750
      413C-GH2350T18W
                           18
      COB
         900
       3000/4000/6500
       White/Dark grey
    150*150*2350
      414A-GH350T24W
                           24
      COB
        1200
       3000/4000/6500
       White/Dark grey
    150*150*350
      414B-GH750T24W
                           24
      COB
        1200
       3000/4000/6500
      White/Dark grey
    150*150*750
      414C-GH2350T24W
                           24
      COB
        1200
       3000/4000/6500
       White/Dark grey
   150*150*2350
