Oak WALL/ FLOOR MOUNTED LUMINAIRE 420





Description

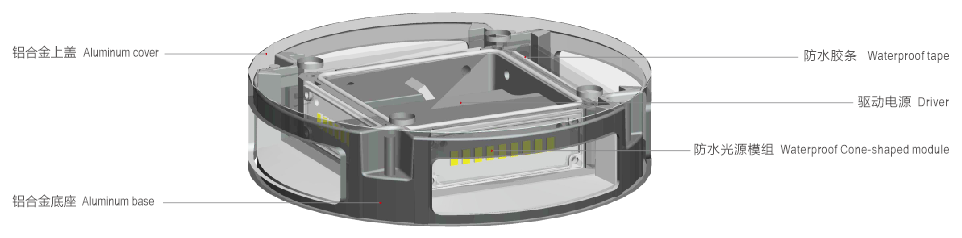

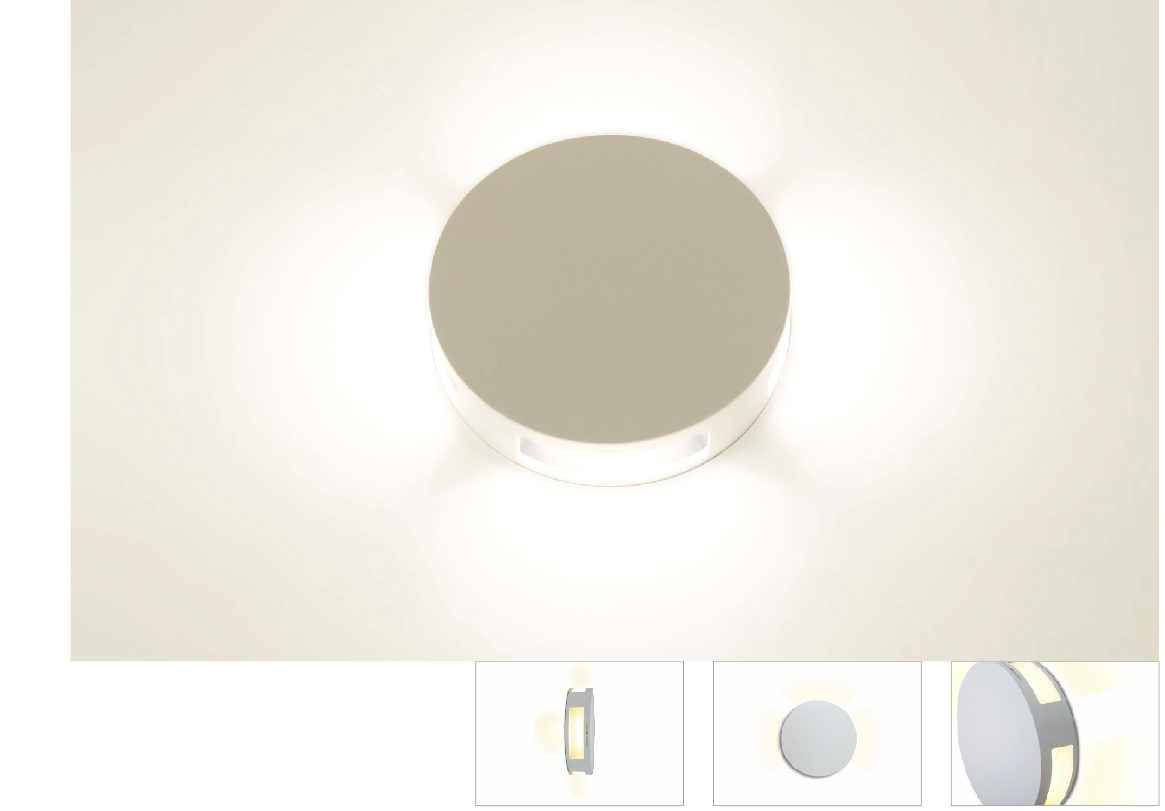

Oak 420 series is one compact and functional round LED wall lamp with waterproof structure in IP65, round die-cast aluminum cover, all aluminum alloy structure, electrostatic powder coated finish, suitable for both indoor and outdoor facades. Available with 1-way, 2-way, 3-way, 4-way illuminating directions to create impressive light effect.
Application: Indoor or outdoor;


Technical Data


Product name: 420 Wall mounted/floor mounted

Type: Wall mounted/floor mounted
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Light source: SMD
Lumina ire efficiency: 50 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/ 5700K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅱ


Details





Standard single fitting



Item No Power(W) Light type Flux(lm ) CCT(K) Color Size(mm)
420A-VS150T3W 3 SMD 170 3000/4000/5700 White/Dark grey Φ150*35
420B-VS150T6W
6 SMD 320
3000/4000/5700
White/Dark grey Φ150*35
420C-VS150T9W
9
SMD
470 3000/4000/5700
White/Dark grey
Φ150*35
420D-VS150T12W 12 SMD
620 3000/4000/5700
White/Dark grey
Φ150*35
