Description:

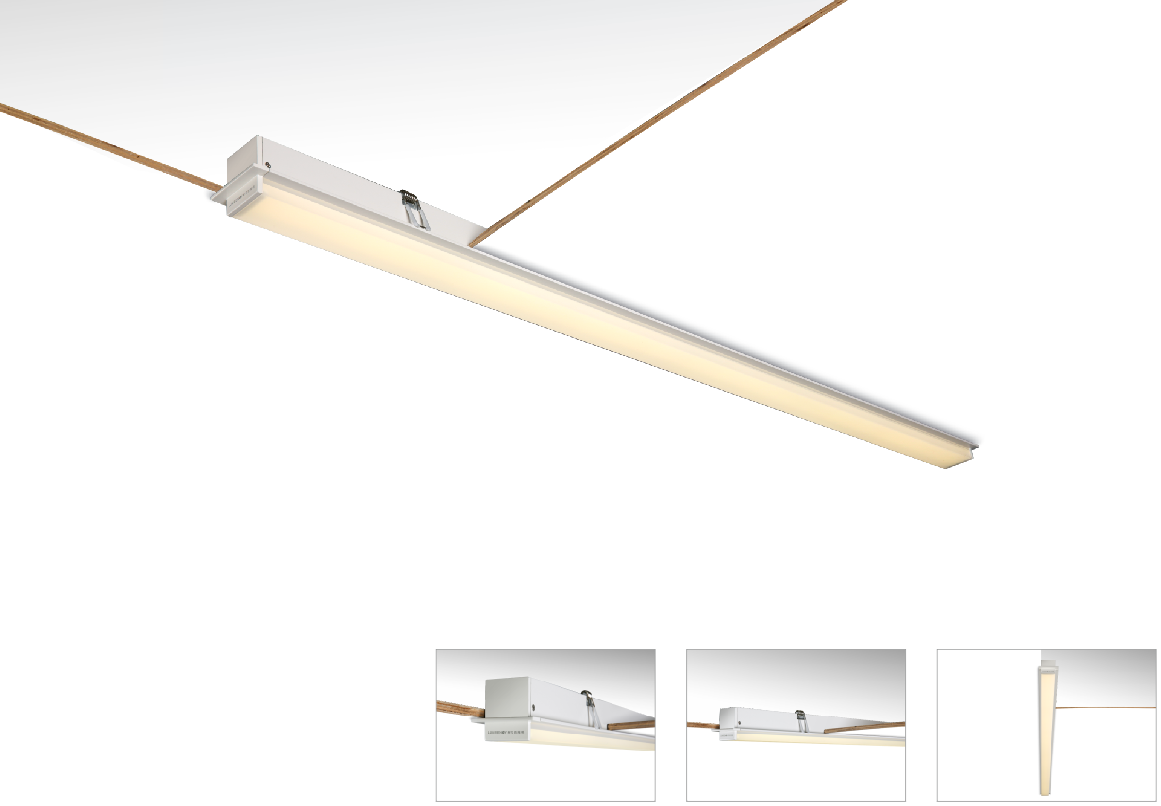

716B Nimble-S series recessed mounted with trim linear LED Luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps , light body, excellent heat dissipation, UV and Corrosion resistance. Slim Compact series with Germany imported high transmittance U-shape PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions. Advanced thermal management technology to ensure consistency of LED life span,  color temperature and maximize output lumens.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.


Technical Data：

Product name: 716B Recessed luminaires
Type: Recessed
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Lumina ire efficiency: 90 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

Standard single fitting：
