Nimble- S ceiling mounted luminaires729



Description:

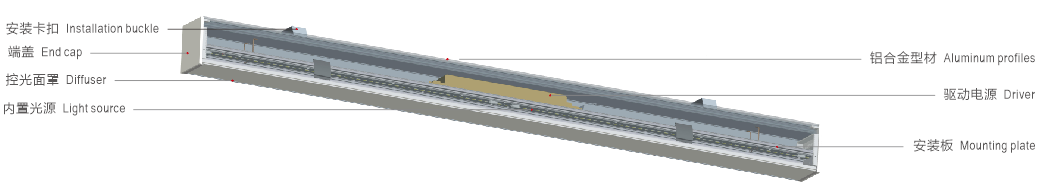

729 Nimble series Ceiling surface mounted Linear LED luminarie, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws, light body, simple and easy installation, excellent heat dissipation. Slim Compact series with Germany imported high transmittance PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. Trimless recessed mounted is also available for this series.
Applications: Office, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.


Technical Data


Product name:729 Ceiling surface mounted luminarie
Type: Ceiling surface mounted
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Lumina ire efficiency: 95 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ


Details




Standard single fitting


Item No

Power(W)

Light type

Flux(lm)

CCT(K)

Color

L*W*H(mm)

729-CS1140T18W

18W

SMD

1962 lm

3000/4000/6500

Silver

1140*68*80

729-CS1700T27W

27W

SMD

2943 lm

3000/4000/6500

Silver

1700*68*80

729-CS2260T36W

36W

SMD

3924 lm

3000/4000/6500

Silver

2260*68*80

729-CS1140T36W

36W

SMD

3924 lm

3000/4000/6500

Silver

1140*68*80


729-CS1700T54W

54W

SMD

5886 lm

3000/4000/6500

Silver

1700*68*80


729-CS2260T72W

72W

SMD

7848 lm

3000/4000/6500

Silver

2260*68*80
