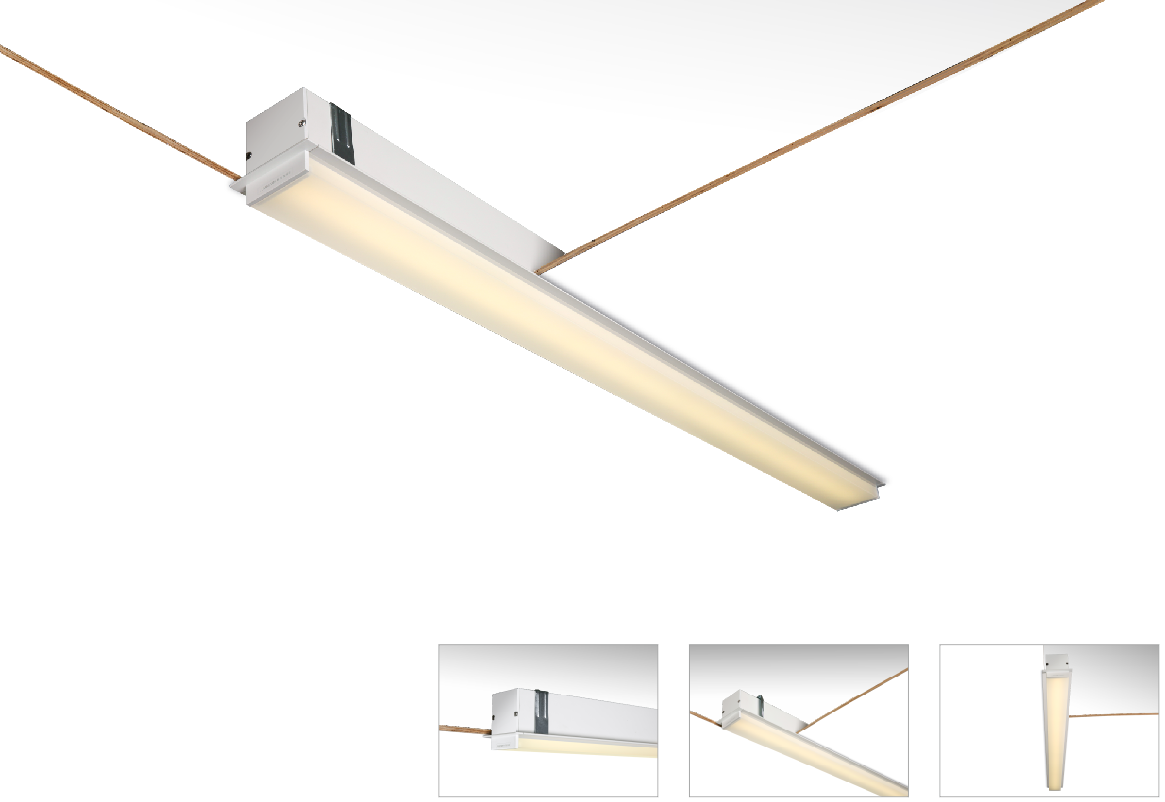

Nimble- S recessed luminaires733B


Description:


733B Nimble series ceiling recessed Linear LED luminaries, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps , light body, excellent heat dissipation, UV and Corrosion resistance. Slim Compact series with Germany imported high transmittance U-shape PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions. Fixed direct distributions only. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.


Technical Data


Product name:733B Recessed luminaire
Type: Recessed
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Lumina ire efficiency: 105 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

Details




Standard single fitting




Item No

Power(W)

Light type

Flux(lm)

CCT(K)

Color

L*W*H(mm)

733B-RM1160T18W

18W

SMD

1890 lm

3000/4000/6500

White

1160*90*85

733B-RM1720T27W

27W

SMD

2835 lm

3000/4000/6500

White

1720*90*85

733B-RM2280T36W

36W

SMD

3780 lm

3000/4000/6500

White

2280*90*85

733B-RM1160T36W

36W

SMD

3780 lm

3000/4000/6500

White

1160*90*85

733B-RM1720T54W

54W

SMD

5670 lm

3000/4000/6500

White

1720*90*85

733B-RM2280T72W

72W

SMD

7560 lm

3000/4000/6500

White

2280*90*85
