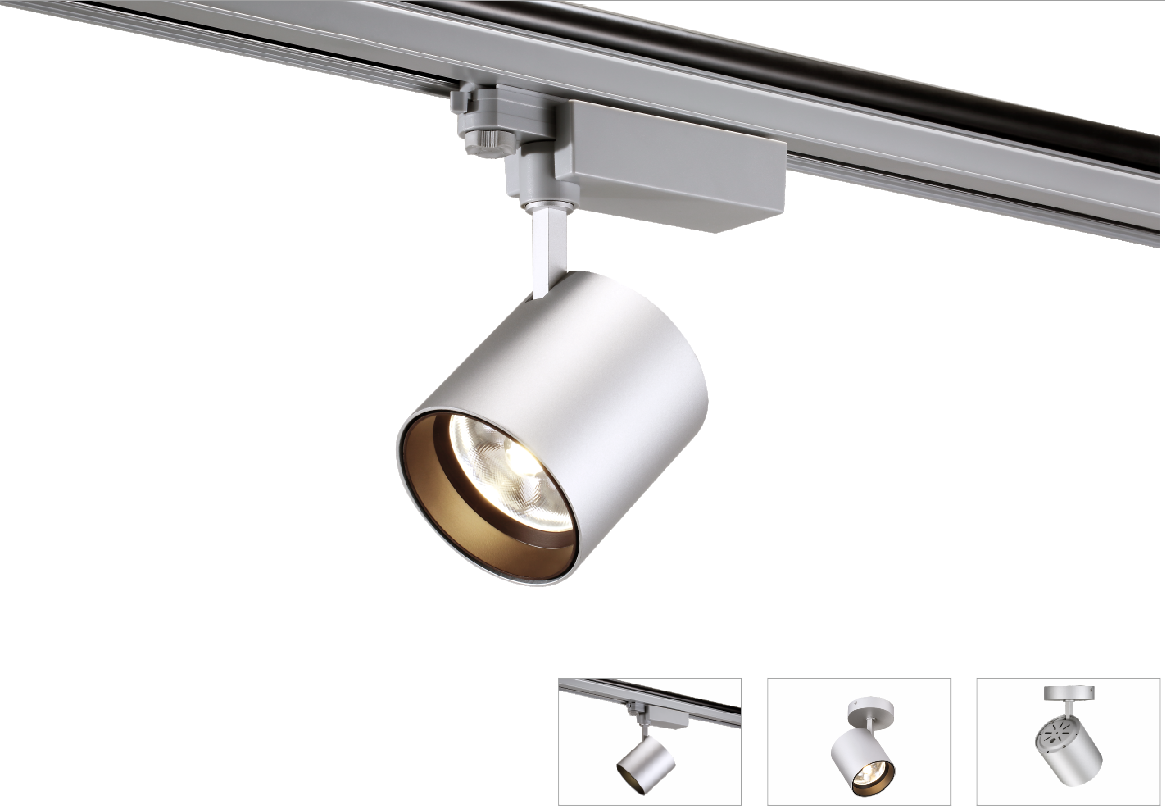

Oxeye Track/Ceiling Mounted spot light 532


Description


532 track/ ceiling mounted spot light with high quality extruded aluminum alloy in durable corrosion resistance, anti-fading and anti-scratch electrostatic thermo-painting finish. Professionally reflector designed according to different LED wave length well optimized the optimized the optical property and at the same time achieved the maximum lighting efficiency, 12°/24°/38° three beam angles available. Advance thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. There are both track and ceiling mounted installed way for this fixture.
Applications: Shopping malls, Specialty stores, hotels, exhibitions and other places.


Technical Data


Product name: 532 Spot light
Type: Track / Ceiling Spot light
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Light source: COB
Luminaire efficiency: 100 lm/W
CRI: ≥80
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade:



Details




Standard single fitting




Item No Power(W) Light type Beam Angle Flux(lm) CCT(K) color L*W*H(mm)(mm)

532-TS122T20W

20 W

COB

12°/24°/36°

2000 lm

3000/4000/6500

Silver

Φ116*174

532-CS122T20W
20 W
COB
12°/24°/36°
2000 lm
3000/4000/6500
Silver
Φ116*174
