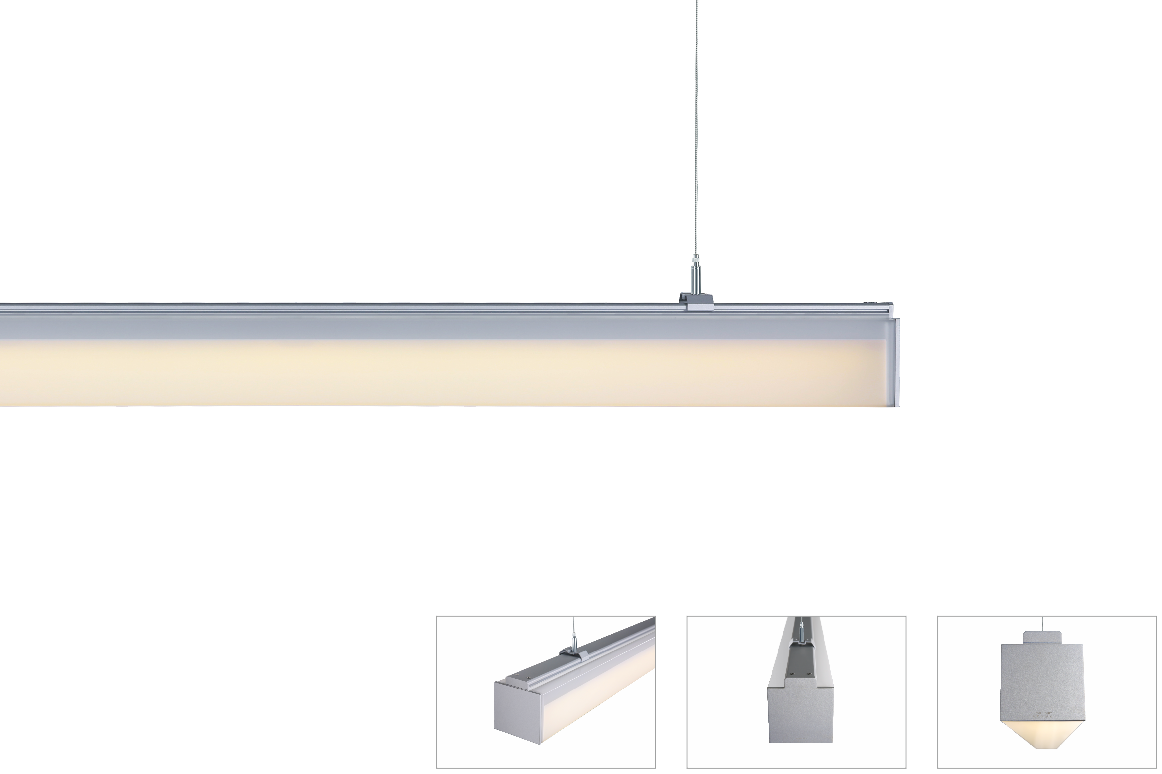

Niman suspended luminaires 703




Description:

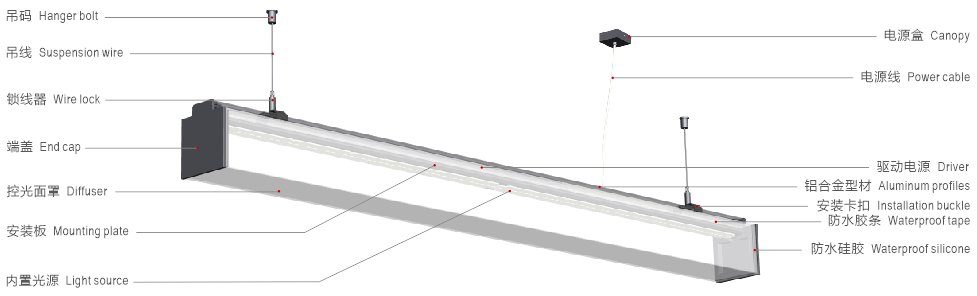

703 series linear light, simple and concise look, high quality extruded aluminum housing, die-cast aluminum end caps with no visible screws and square tubular diffuser which provides 270° illumination and smooth uniform appearance. Advanced Thermal Management ensures maximum lumen maintenance and consistent color temperature.
Application: offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails, etc.

Technical Data


Product name: 703 Suspended luminaire
Type: Suspended
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 128 lm/W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ


Details




Standard single fitting


Item No

Power(W)

Light type

Flux(lm)

CCT(K)

Color

L*W*H(mm)

703-SS1147T18W

  18 W

SMD

2304 lm

3000/4000/6500

Silver

1147*90*100

703-SS1707T27W

27 W

SMD

3456 lm

3000/4000/6500

Silver

1707*90*100

703-SS2267T36W

 36 W

SMD

4608 lm

3000/4000/6500

Silver

2267*90*100

703-SS1147T36W

36 W

SMD

4608 lm

3000/4000/6500

Silver

1147*90*100

703-SS1707T54W
                                  54 W
SMD
        6912 lm
3000/4000/6500
Silver
1707*90*100
703-SS2267T72W
                                  72 W
SMD
9216 lm
3000/4000/6500
Silver
2267*90*100
