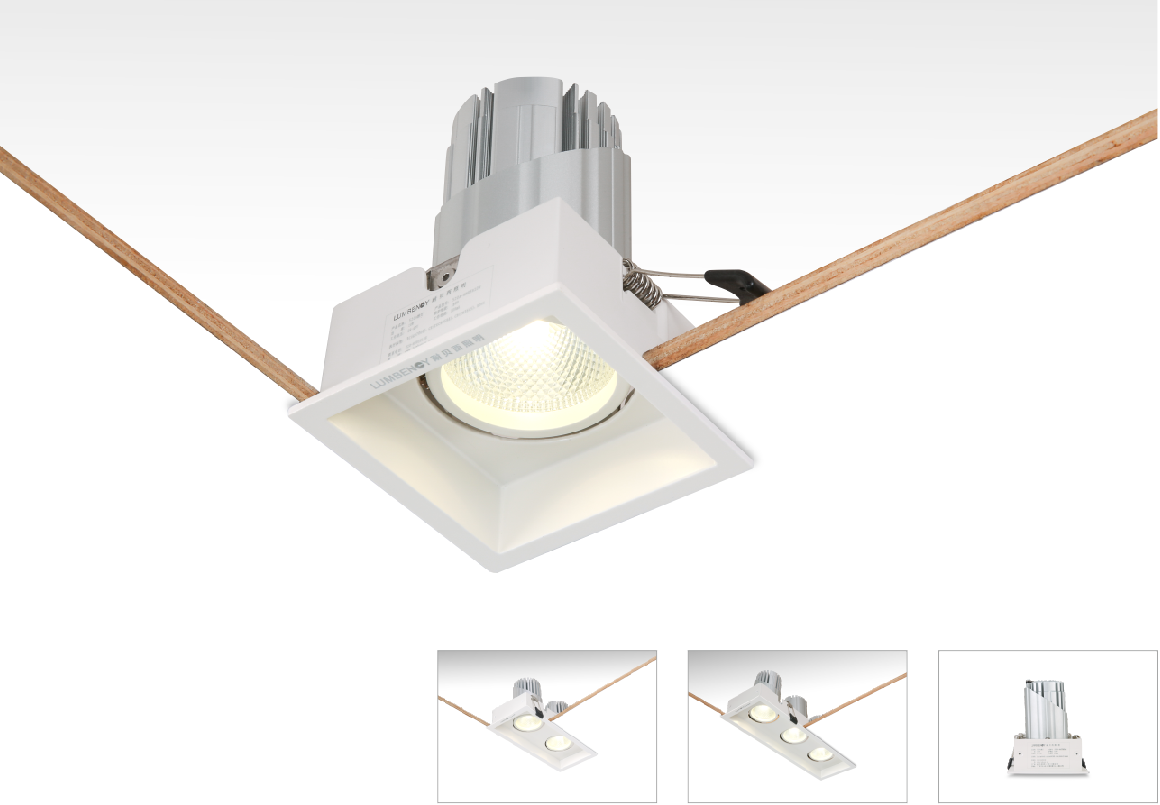

Iron man 3-inch round spot light luminaires 520





Description


520 series square spot light with aluminum die-cast plus aluminum alloy structure including two types: illumination angles adjustable and non-adjustable, 12°and 24°two beam angles options are available. Specially designed reflector according to different LED wave length well optimized the optical property and at the same time achieved the maximum lighting efficiency. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens places.
Applications: Shopping malls, specialty stores, hotels, exhibitions etc.



Technical Data


Product name: 520 Square spot lights
Type: Square spot light
Housing material: Die cast aluminum +High quality aluminum alloy
Surface finish: Electrostatic thermo-painting
Light source: COB
Luminaire efficiency: 78 lm /W
CRI: ≥85
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅱ


Details





system combination








Standard single fitting


Item No

Power(W)

Light type

Beam Angle

Flux(lm)

CCT(K)

color

Opening(mm)

L*W*H(mm)

520A-RM85B10W

10 W

COB

12°/24°

780 lm

3000/4000/6500

White

76*76

85*85*113

520B-RM180B20W

20 W

COB

12°/24°

1560 lm

3000/4000/6500

White

172*76

180*85*113

520C-RM270B30W

30 W

COB

12°/24°

2340 lm

3000/4000/6500

White

262*76

270*85*113
