Technical Data:

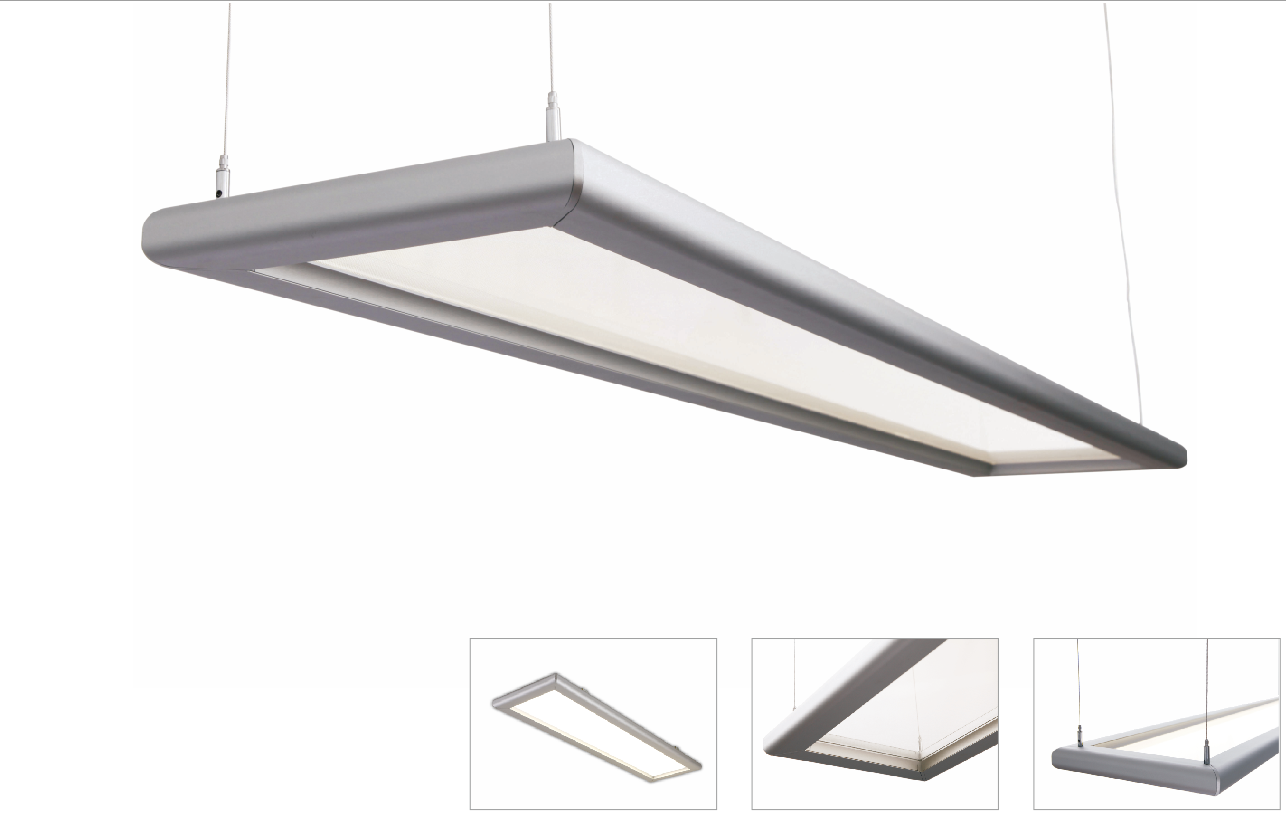

741 series suspended/Ceiling surface mounted luminaire fitting with aluminum ally structure integrated with advanced side light transmittance technology, direct and indirect light illuminating, high transmitting optical light guide PMMA plate create shadow free and uniform light output without any glare. Advance thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Offices, schools, hospitals, hotels, shopping malls, public buildings etc.
Technical Data：
Product name: 741 Suspended /Ceiling surface mounted luminaire
Type: Suspended/Ceiling surface mounted
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 85 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ
Details：
Standard single fitting：
|
Item No |
Power（W） |
Light type |
Flux（lm） |
CCT（K) |
color |
Size（mm）（mm） |
|
741-SS1237T36W |
36W |
SMD |
3060 lm |
3000/4000/6500 |
Silver |
1237*320*40 |
|
741-SS1799T54W |
54W |
SMD |
4590 lm |
3000/4000/6500 |
Silver |
1799*320*40 |
|
741-SS2361T72W |
72W |
SMD |
6120 lm |
3000/4000/6500 |
Silver |
2361*320*40 |
|
741U-SS1237T36W |
36W |
SMD |
3060 lm |
3000/4000/6500 |
Silver |
1237*320*40 |
|
741U-SS1799T54W |
54W |
SMD |
4590 lm |
3000/4000/6500 |
Silver |
1799*320*40 |
|
741U-SS2361T72W |
72W |
SMD |
6120 lm |
3000/4000/6500 |
Silver |
2361*320*40 |
|
741D-SS1237T36W |
36W |
SMD |
3060lm |
3000/4000/6500 |
Silver |
1237*320*40 |
|
741D-SS1799T54W |
54W |
SMD |
4590lm |
3000/4000/6500 |
Silver |
1799*320*40 |
|
741D-SS2361T72W |
72W |
SMD |
6120 lm |
3000/4000/6500 |
Silver |
2361*320*40 |
|
741-CS1237T36W |
36W |
SMD |
3060 lm |
3000/4000/6500 |
Silver |
1237*320*40 |
