Description:

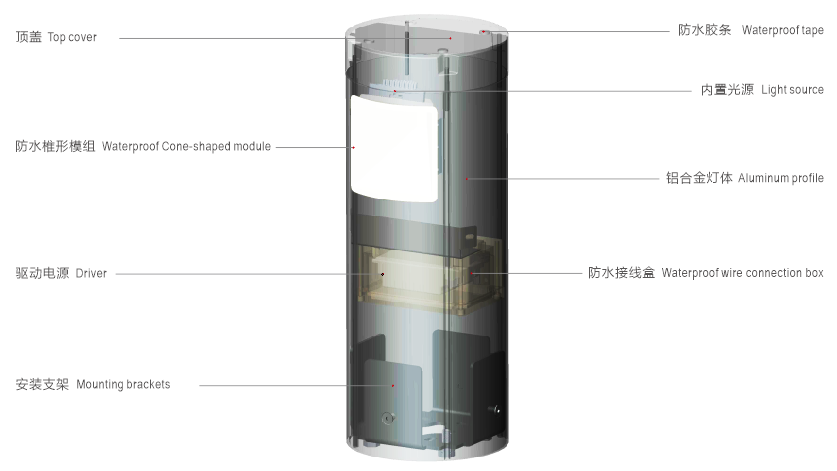

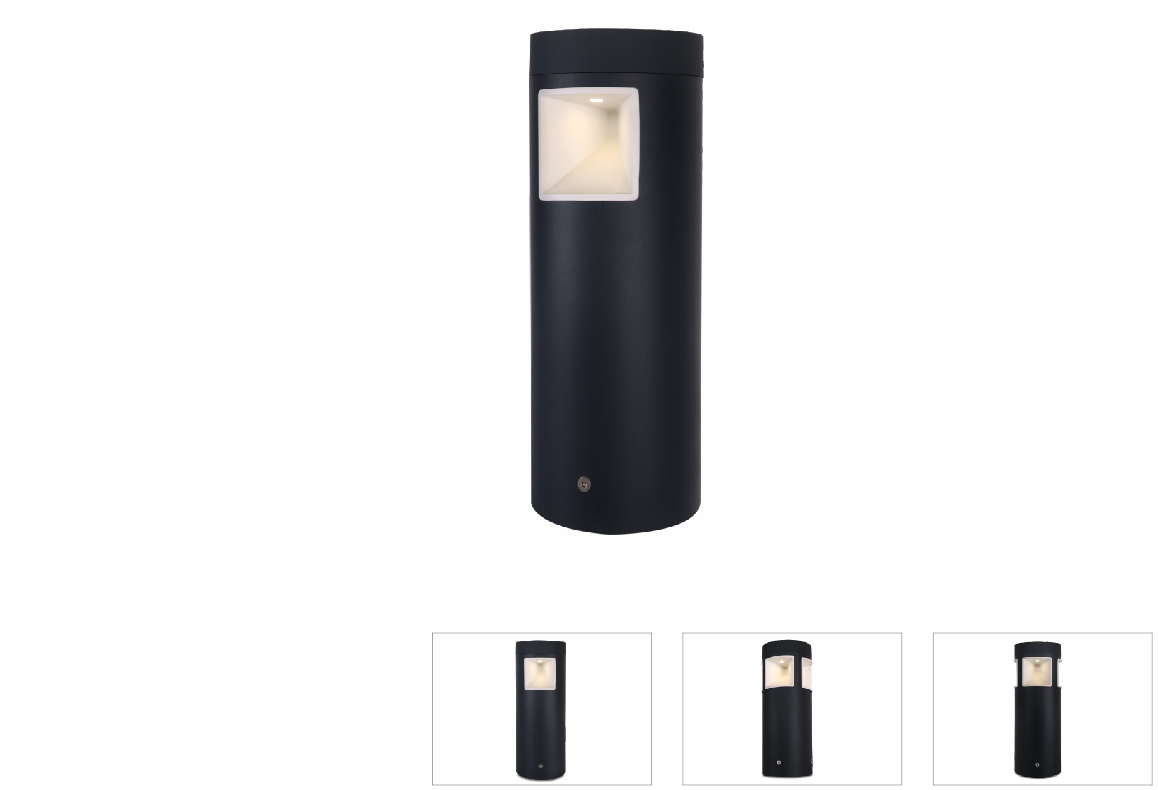

Oak series is one beautiful vandal-proof bollard lamp in IP65 with waterproof structure waterproof rating. Round tubular aluminum die-casting top cover and all aluminum alloy structure with electrostatic powder coated finish; Standard height: 350mm/750mm/2350mm; Customized height: Maximum 3600mm.The modularity allows the LED modular be flexible to locate at any height and its flexible make this bollard all-round functional lighting solution. Oak series included 421-424 series (1-way light)/422 series (2-way light)/423 series (3-way light)/424 series (4-way light);
Application: Outdoor ground Sidewalk, Garden and some other public;
Technical Data:
Product name: 421-424 Bollard luminaires
Type: Bollard luminaires
Details:
Standard single fitting:
Item No | Power(W) | Light type | Flux(lm ) | CCT(K) | color | Size(mm) |
421A-GG350T6W | 6 | COB | 300 | 3000/4000/6500 | White/Dark grey | Φ150*350 |
421B-GG750T6W |
6 | COB |
300 |
3000/4000/6500 |
White/Dark grey |
Φ150*750 |
421C-GG2350T6W |
6 |
COB |
300 |
3000/4000/6500 |
White/Dark grey |
Φ150*2350 |
422A-GG350T12W |
12 |
COB |
600 |
3000/4000/6500 |
White/Dark grey |
Φ150*350 |
422B-GG750T12W |
12 |
COB |
600 |
3000/4000/6500 |
White/Dark grey |
Φ150*750 |
422C-GG2350T12W |
12 |
COB |
600 |
3000/4000/6500 |
White/Dark grey |
Φ150*2350 |
423A-GG350T18W |
18 |
COB |
900 |
3000/4000/6500 |
White/Dark grey |
Φ150*350 |
423B-GG750T18W |
18 |
COB |
900 |
3000/4000/6500 |
White/Dark grey |
Φ150*750 |
423C-GG2350T18W |
18 |
COB |
900 |
3000/4000/6500 |
White/Dark grey |
Φ150*2350 |
424A-GG350T24W |
24 |
COB |
1200 |
3000/4000/6500 |
White/Dark grey |
Φ150*350 |
424B-GG750T24W |
24 |
COB |
1200 |
3000/4000/6500 |
White/Dark grey |
Φ150*750 |
424C-GG2350T24W |
24 |
COB |
1200 |
3000/4000/6500 |
White/Dark grey |
Φ150*2350 |
