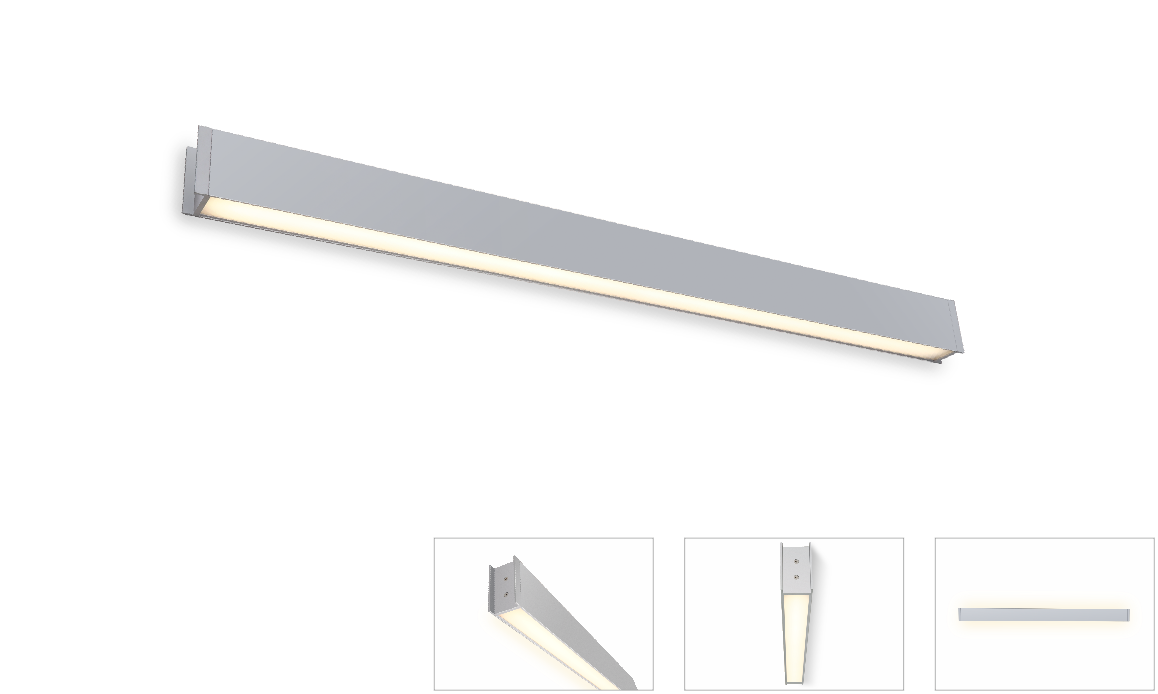

Elita WALL mounted luminaires 730B




Description:

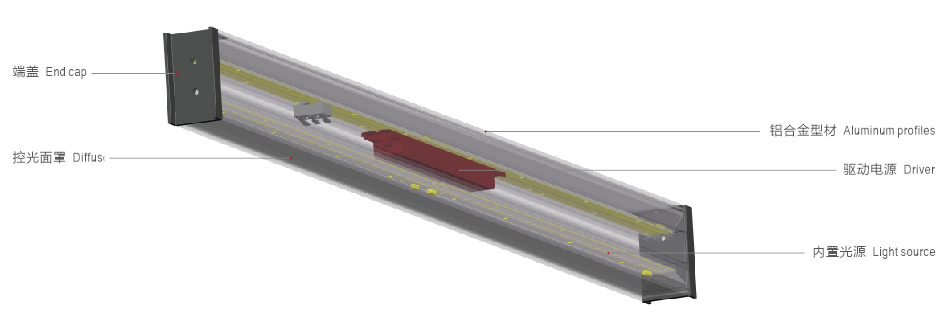

730B series linear wall lamp, housing made of high pressure extruded aluminum construction, also the modularized structure can made this lamp systematic available. The innovative integrated structure and slim lamp body means great breakthrough in LED lamp design. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Application: Office building, school, hospital, supermarket, mall, hotel, and other public area and facility.


Technical Data


Product name: 730B Wall mounted luminaire
Type:  Wall mounted
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 90 lm/W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ


Details




Standard single fitting



Item No

Power(W)

Light type

Flux(lm)

CCT(K)

color

L*W*H(mm

730B-VS1170T18W

18W

SMD

1620 lm

3000/4000/6500

Silver

1170*50*88

730B-VS1170T27W

27W

SMD

2430 lm

3000/4000/6500

Silver

1170*50*88

730B-VS2290T36W

36W

SMD

3240 lm

3000/4000/6500

Silver

2290*50*88

730BU-VS1170T36W

36W

SMD

3240 lm

3000/4000/6500

Silver

1170*50*88

730BU-VS2290T72W

72W

SMD

6480 lm

3000/4000/6500

Silver

2290*50*88
