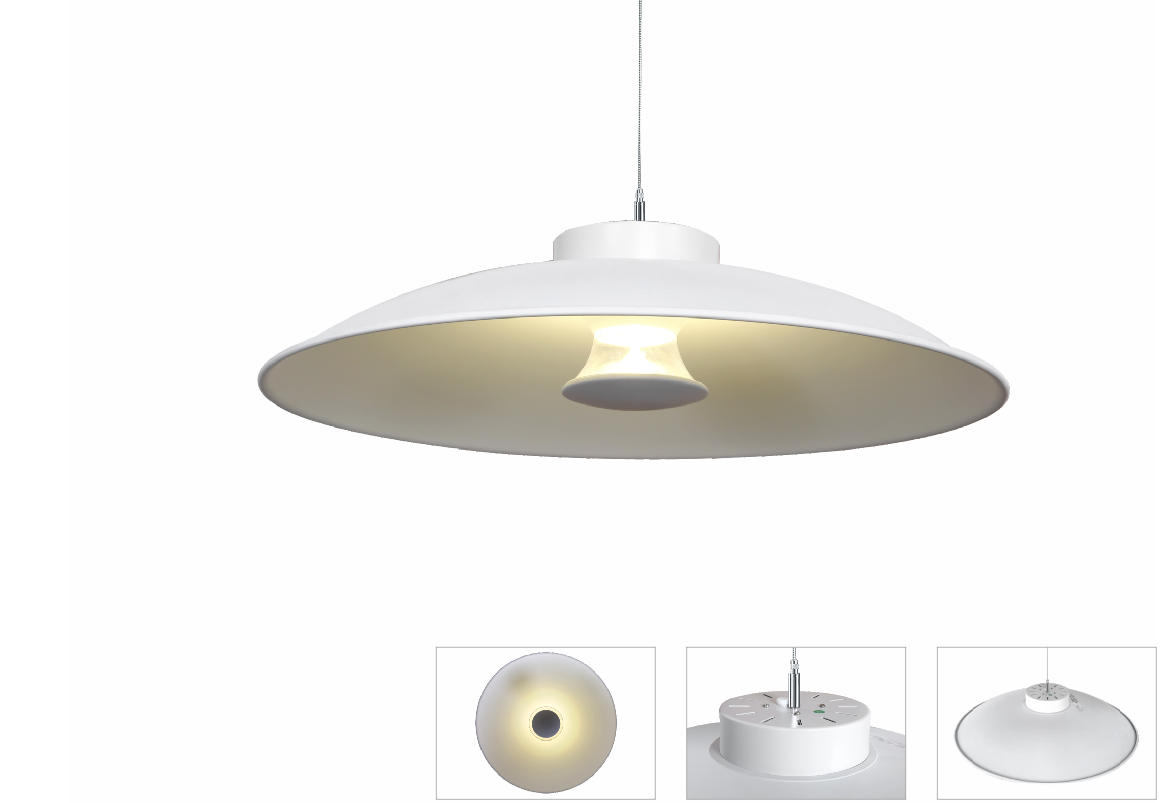

Eclipse suspended luminaires 724A




Description:

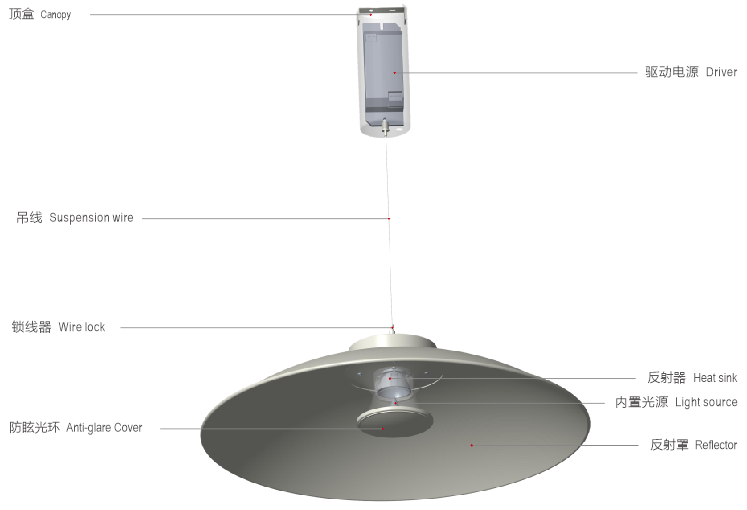

724A Eclipse series, housing made of steel sheet and aluminum frame, reflection surface is in Nanoflex powder coating with very high reflection efficiency to achieve the maximum output efficiency and makes soft and glare free light output with wide beam angle via secondary reflection. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Offices, schools, hospitals, hotels, shopping malls, public buildings etc.


Technical Data


Product name: 724A Suspended luminaire
Type: Suspended
Housing material: Steel sheet
Surface finish: Nanoflex powder coating
Light source: COB
Luminaire efficiency: 71 lm /W
CRI: ≥80
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220V-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅱ


Details




Standard single fitting



Item No Power(W) Light type Flux(lm) CCT(K) Color Size(mm)
724A-SM600T30W 30W COB 2130 lm 3000/4000/6500 White Φ560*128
