Description:

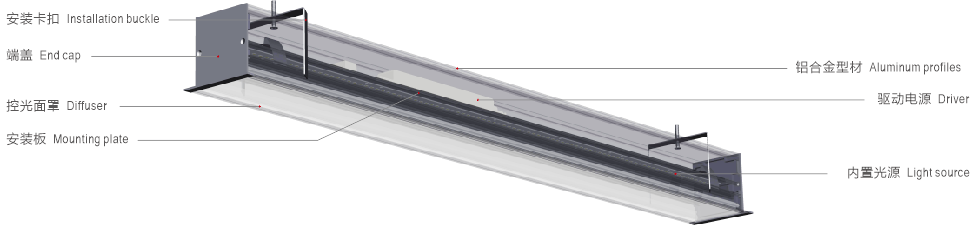

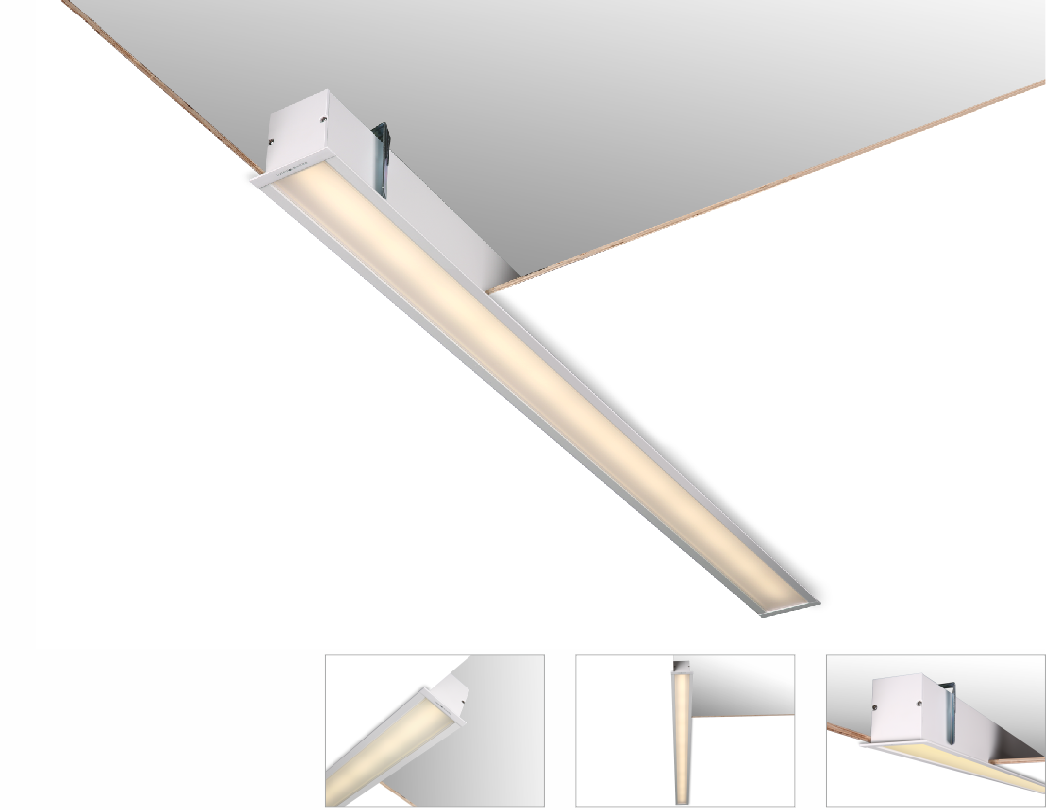

736 Specification Grade Plaster Ceiling recess mount with Trim linear LED Luminaire. Housing made of high pressure extruded aluminum construction, Die-cast aluminum end cap. UV and Corrosion resistance, with durable, anti-fading and anti-scratch Electrostatic Thermo-painting finish in Architectural Silver Grey or Matt White. (Other colors available upon request).
Slim Compact series with Germany imported high transmittance PMMA diffuser specially designed for LED light sources creating smooth and uniform lighting distributions (LED Dots-Free illumination), high visual comfort for all lighting applications. Fixed direct distributions only. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. 736 series are also available in seamless continuous lighting system without visible dark spot or light gaps. Customized your own unique lighting system with our latest addition of system connection module accessories (L-shape / Cross-shape / T-shape). Simple and easy installation for every user.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.

Technical Data：

Product name: 736 Recessed luminaire
Type: Recessed
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 85 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ

Details：

Standard single fitting：
