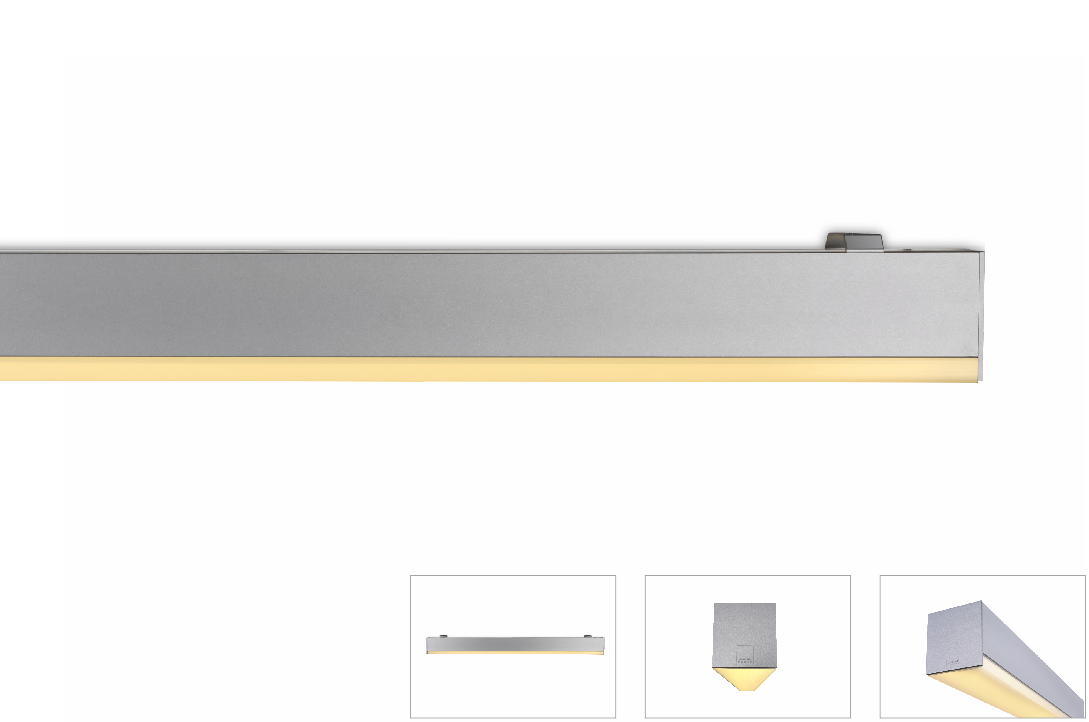

Nimble-L Ceiling surface mounted luminaire 735B



Description:

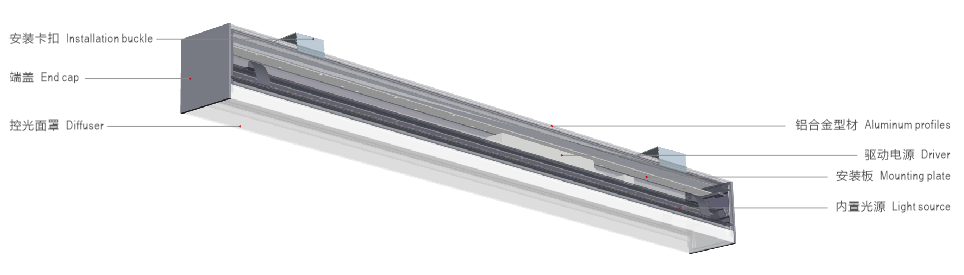

735B Nimble series Suspend mounted linear LED Luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws, simple and easy installation, excellent heat dissipation. Available with fixed direct distributions and the indirect/direct distributions options, applying anti-glare diffuser and double transmission principle of secondary reflection, Slim Compact series with Germany imported high transmittance U-shape PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.


Technical Data


Product name: 735B Suspended luminaire
Type: Suspended
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 105 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ


Details



Standard single fitting



Item No

Power(W)

Light type

Flux(lm)

CCT(K)

Color

L*W*H(mm)

735B-CS1143T18W

18W

SMD

1890 lm

3000/4000/6500

Silver

1143*94*105

735B-CS1703T27W

27W

SMD

2835 lm

3000/4000/6500

Silver

1703*94*105

735B-CS2263T36W

36W

SMD

3780lm

3000/4000/6500

Silver

2263*94*105

735B-CS1143T36W

36W

SMD

3780 lm

3000/4000/6500

Silver

1143*94*105

735B-CS1703T54W

54W

SMD

5670 lm

3000/4000/6500

Silver

1703*94*105

735B-CS2263T72W

72W

SMD

7560 lm

3000/4000/6500

Silver

2263*94*105

735BU-CS1143T36W

36W

SMD

3780 lm

3000/4000/6500

Silver

1143*94*105

735BU-CS1703T54W

54W

SMD

5670 lm

3000/4000/6500

Silver

1703*94*105

735BU-CS2263T72W

72W

SMD

7560 lm

3000/4000/6500

Silver

2263*94*105

735BU-CS1143T72W

72W

SMD

7560 lm

3000/4000/6500

Silver

1143*94*105

735BU-CS1703T108W

108W

SMD

11340 lm

3000/4000/6500

Silver

1703*94*105

735BU-CS2263T144W

144W

SMD

15120 lm

3000/4000/6500

Silver

2263*94*105
