Description:

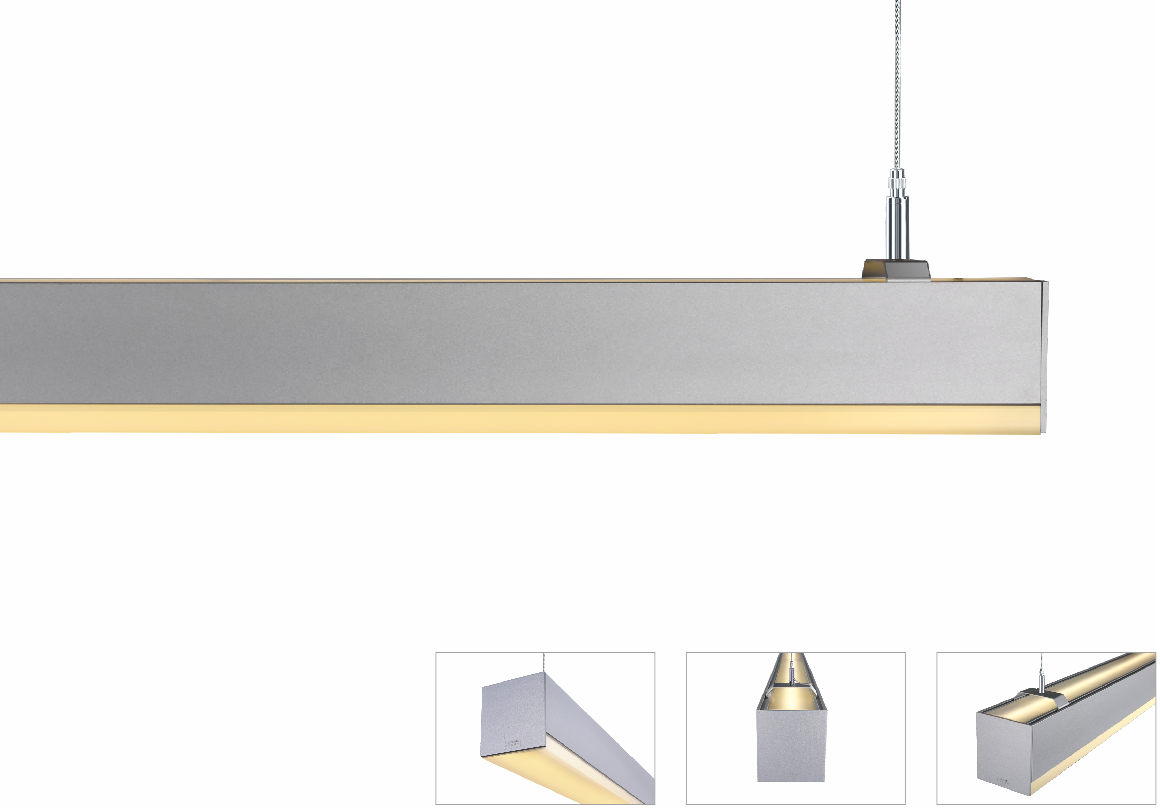

735B Nimble series Suspend mounted linear LED Luminaire, housing made of high pressure extruded aluminum construction, die-cast aluminum end caps with no visible screws, simple and easy installation, excellent heat dissipation. Available with fixed direct distributions and the indirect/direct distributions options, applying anti-glare diffuser and double transmission principle of secondary reflection, Slim Compact series with Germany imported high transmittance U-shape PMMA diffuser specially designed for LED light source creating smooth and uniform lighting distributions, without visible dark spot or light gaps in seamless continuous lighting system. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.
Applications: Offices, Educational Institutes, Hospitals, Warehouses, Hospitality, Retails Etc.
Technical Data:
Product name: 735B Suspended luminaire
Type: Suspended
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 105 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Lifespan: 30000h
Electrical grade: Ⅰ
Details:
Standard single fitting:
Item No |
Power(W) |
Light type |
Flux(lm) |
CCT(K) |
Color |
L*W*H(mm) |
735B-SS1143T18W |
18W |
SMD |
1890 lm |
3000/4000/6500 |
Silver |
1143*94*105 |
735B-SS1703T27W |
27W |
SMD |
2835 lm |
3000/4000/6500 |
Silver |
1703*94*105 |
735B-SS2263T36W |
36W |
SMD |
3780lm |
3000/4000/6500 |
Silver |
2263*94*105 |
735B-SS1143T36W |
36W |
SMD |
3780 lm |
3000/4000/6500 |
Silver |
1143*94*105 |
735B-SS1703T54W |
54W |
SMD |
5670 lm |
3000/4000/6500 |
Silver |
1703*94*105 |
735B-SS2263T72W |
72W |
SMD |
7560 lm |
3000/4000/6500 |
Silver |
2263*94*105 |
735BU-SS1143T36W |
36W |
SMD |
3780 lm |
3000/4000/6500 |
Silver |
1143*94*105 |
735BU-SS1703T54W |
54W |
SMD |
5670 lm |
3000/4000/6500 |
Silver |
1703*94*105 |
735BU-SS2263T72W |
72W |
SMD |
7560 lm |
3000/4000/6500 |
Silver |
2263*94*105 |
735BU-SS1143T72W |
72W |
SMD |
7560 lm |
3000/4000/6500 |
Silver |
1143*94*105 |
735BU-SS1703T108W |
108W |
SMD |
11340 lm |
3000/4000/6500 |
Silver |
1703*94*105 |
735BU-SS2263T144W |
144W |
SMD |
15120 lm |
3000/4000/6500 |
Silver |
2263*94*105 |
