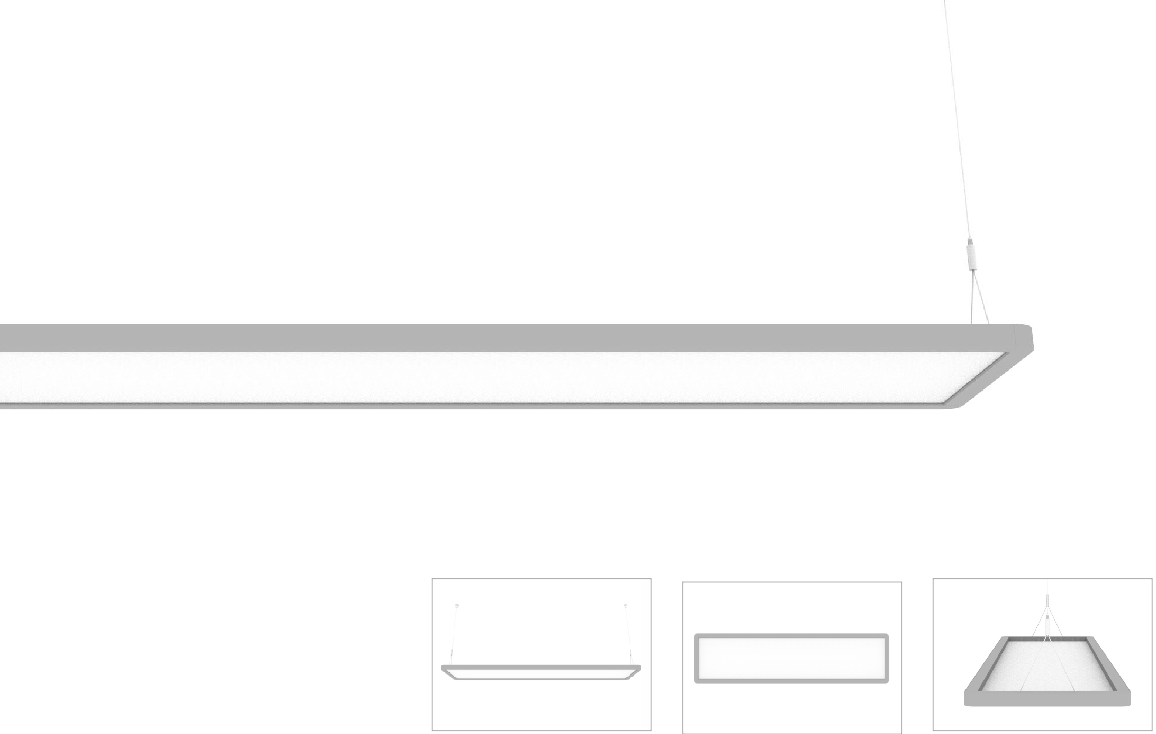

Stary suspended luminaires 746


Description

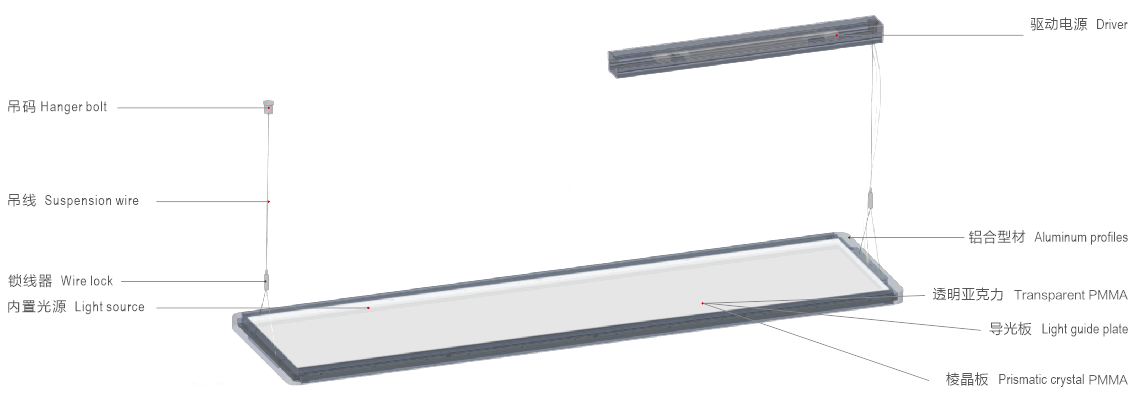

746 series Suspended luminaire with aluminum alloy structure integrated with advanced side light transmittance technology, direct and indirect light illuminating, high transmitting optical light guide PMMA plate create shadow free and uniform light output without any glare. Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens. Suspended, ceiling surface mounted lamp, wall lamp, floor lamp, desk reading lamp are available for 746 series.
Applications: Offices, schools, hospitals, hotels, shopping malls, public buildings, airport halls etc.


Technical Data


Product name:746 Suspended luminaire
Type: Suspended
Housing material: High-quality Aluminum alloy
Surface finish: Electrostatic thermo-painting
Diffuser material: PMMA
Light source: SMD
Luminaire efficiency: 90 lm /W
CRI: ≥83
Color temperature: 3000K/ 4000K/6500K
Input voltage: 220-240V
Driver: High efficiency driver
Dimming type: DALI dimming
Control methods: Microwave sensor, light control, Sound control,  Wifi or Ble、Zigbee, Emergency kits.
Lifespan: 30000h
Certificates: CCC、CE、CB、RoHS
IP: 20
Electrical grade: Ⅰ

Details



Standard single fitting


Item No

Power(W)

Light type

Flux(lm)

CCT(K)

color

Size(mm)(mm)

746-SS1200T36W

36W

SMD

3240 lm

3000/4000/6500

Silver

1170*320*20
